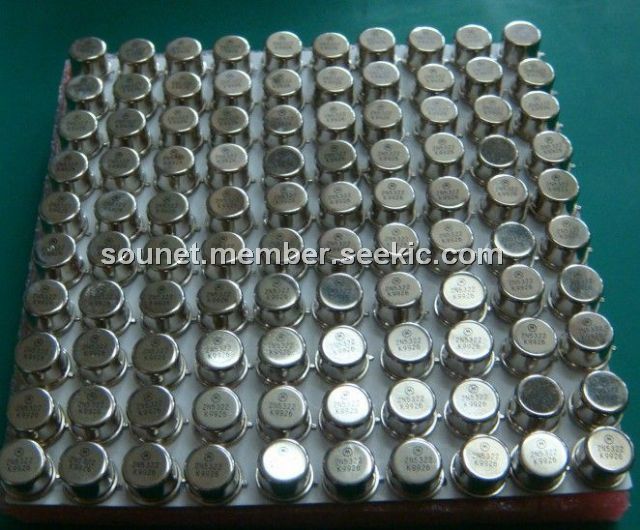

Product Summary

The 2N5322 is a silicon epitaxial planar PNP transistor in Jedec TO-39 metal case. The 2N5322 is especially intended for high-voltage medium power application in industrial and commercial equipments. The complementary NPN types are respectively the 2N5320 and 2N5321.

Parametrics

2N5322 maximum ratings: (1)Collector-Base Voltage (IE = 0): -100 V; (2)VCEV Collector-Emitter Voltage (VBE = -1.5V): -100 V; (3)VCEO Collector-Emitter Voltage (IB = 0): -75V; (4)VEBO Emitter-Base Voltage (IC = 0): -6 V; (5)Collector Current: -1.2 A; (6)Collector Peak Current: -2 A; (7)Base Current: -1 A; (8)Total Dissipation at Tamb = 25℃: 1 W; (9)Ptot Total Dissipation at Tc = 25 ℃: 10 W; (10)Storage and Junction Temperature: -65 to 200 ℃.

Features

2N5322 features: (1)Silicon epitaxial planar PNP transistors; (2)medium power amplifier; (3)NPN Complements are 2N5320 and 2N532.

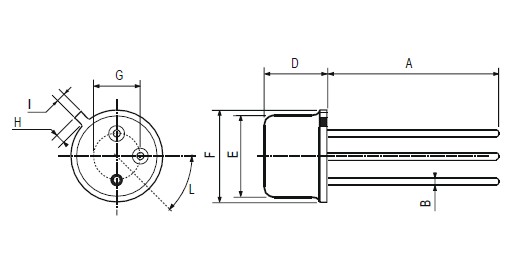

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N5322
2N5322
Central Semiconductor
Transistors Bipolar (BJT) PNP 75V 2A
Data Sheet
0-1: $0.98
1-25: $0.94
25-100: $0.89
100-250: $0.85
