Product Summary

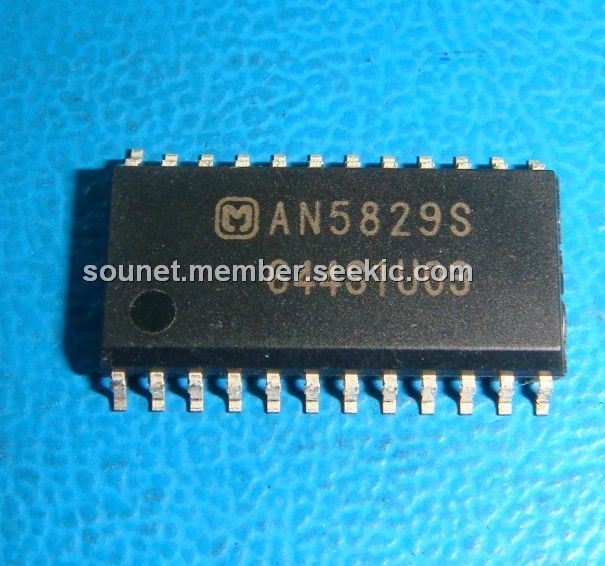

The AN5829S is a multiplex sound demodulation IC dedicated to the U.S. television and incorporates a bi-directional I2C interface (adjustment, mode SW), an AGC circuit and external stereo input switches (2 systems). The applications of the AN5829S include Televisions and VCRs for the North American market.
Parametrics
AN5829S absolute maximum ratings: (1)Supply voltage, VCC: 6.0 V; (2)Supply current, ICC: 25 mA; (3)Power dissipation, PD: 150 mW; (4)Operating ambient temperature, Topr: -20 to +75℃; (5)Storage temperature, Tstg: -55 to +125℃.
Features
AN5829S features: (1)Stereo demodulation, SAP demodulation, dbx noise reduction, AGC, external stereo input SW and I2C bus interface are integrated in a single chip; (2)Bi-directional I2C bus makes it possible to monitor MPX input level, separation adjustment (3 places), mode changeover and receiving status.; (3)Eliminated external parts (multi-sound block: 21 pieces→ 14 pieces; (4)Lower power dissipation (VCC = 5 V, ITOT = 18 mA).
