Product Summary
The 24LC256-I/SN is designed as one kind of 32K x 8 (256 Kbit) serial electrically erasable PROM that can operation across a broad voltage range (1.8V to 5.5V). It also has a page write capability of up to 64 bytes of data and capable of both random and sequential reads up to the 256K boundary. The 24LC256-I/SN is available in the standard 8-pin plastic DIP, SOIC, TSSOP, MSOP and DFN packages.
Parametrics
24LC256-I/SN absolute maximum ratings: (1)Vcc: 6.5 V;(2)all inputs and outputs w.r.t. Vss: -0.6V to Vcc+1.0V; (3)storage temperature:-65℃ to +150℃; (4)ambient temperature with power applied: -40℃ to +125℃; (5)ESD protection on all pins: >/=4 kV; (6)Low-power CMOS technology: Maximum write current 3 mA at 5.5V; Maximum read current 400 μA at 5.5V; Standby current 100 nA, typical at 5.5V; (7)2-wire serial interface bus, I2C compatible.
Features
24LC256-I/SN features: (1)cascadable for up to eight devices;(2)self-timed erase/write cycle;(3)64-byte page write mode available;(4)5 ms max. write cycle time;(5)hardware write-protect for entire array;(6)output slope control to eliminate ground bounce;(7)schmitt trigger inputs for noise suppression;(8)1,000,000 erase/write cycles;(9)electrostatic discharge protection > 4000V;(10)data retention > 200 years;(11)8-pin PDIP, SOIC, TSSOP, MSOP and DFN packages, 14-lead TSSOP package;(12)Pb-free finishes available.

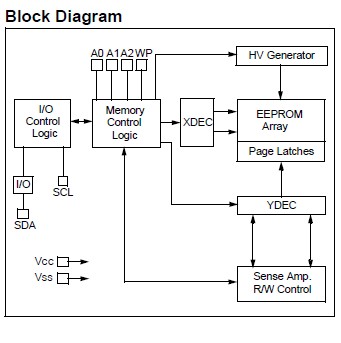

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24LC256-I/SN |
Microchip Technology |
EEPROM 32kx8 - 2.5V |
Data Sheet |
|
|
||||||||||||
|
24LC256-I/SNG |
Microchip Technology |
EEPROM 32kx8 - 2.5V Lead Free Package |
Data Sheet |
|
|
||||||||||||
