Product Summary

The AOT430 is a N-Channel Enhancement Mode Field Effect Transistor. The AOT430 uses advanced trench technology and design to provide excellent RDS (ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. Standard Product AOT430 is Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

Absolute maximum ratings:(1)Drain-Source Voltage, VDS: 75V ; (2)Gate-Source Voltage, VGS: ±25V ; (3)Continuous Drain, TC=25°C, ID: 80A ; (4)Current G, TC=100°C: 78A ; (5)Pulsed Drain Current C, IDM: 200A ; (6)Avalanche Current C, IAR: 45A ; (7)Repetitive avalanche energy L=0.1mHC, EAR: 300MJ ; (8)Power Dissipation B, TC=25°C, PD: 268W ; (9)Power Dissipation B, TC=100°C,PD: 134W; (10)Junction and Storage Temperature Range, TJ, TSTG: -55 to 175°C.

Features

Features:(1)VDS (V) = 75V; (2)ID = 80 A (VGS = 10V); (3)RDS(ON) < 11.5mΩ (VGS = 10V).

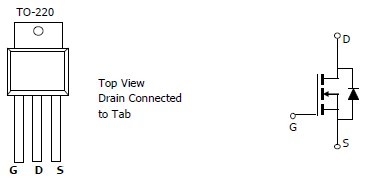

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AOT430
AOT430

MOSFET N-CH 75V 80A TO-220
Data Sheet
Negotiable
