Product Summary
The AT28C16-15PC is a low-power, high-performance Electrically Erasable and Programmable Read Only Memory with easy to use features. The AT28C16-15PC is a 16K memory organized as 2,048 words by 8 bits. The device is manufactured with Atmel’s reliable nonvolatile CMOS technology.
Parametrics
AT28C16-15PC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages (including NC Pins); (3)with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages; (5)with Respect to Ground: -0.6V to VCC + 0.6V; (6)Voltage on OE and A9; (7)with Respect to Ground: -0.6V to +13.5V; (8)Temperature Under Bias: -55℃ to +125℃.
Features
AT28C16-15PC features: (1)Fast Read Access Time - 150 ns; (2)Fast Byte Write - 200 μA or 1 ms; (3)Self-Timed Byte Write Cycle; (4)Automatic Clear Before Write; (5)Direct Microprocessor Control; (6)Low Power; (7)High Reliability; (8)5V 10% Supply; (9)CMOS & TTL Compatible Inputs and Outputs; (10)JEDEC Approved Byte Wide Pinout; (11)Commercial and Industrial Temperature Ranges.

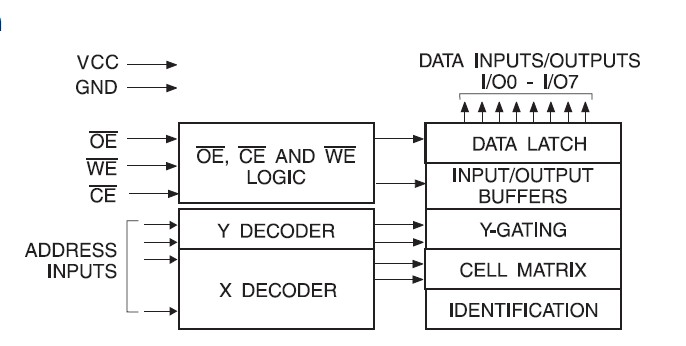

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
AT28C16-15PC |
Atmel |
EEPROM 2Kx8 150ns |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
AT28BV16 |
Other |
Data Sheet |
Negotiable |
|
||||||
AT28BV16-25JC |
Atmel |
EEPROM 16k bit |
Data Sheet |
Negotiable |
|
|||||
AT28BV16-25JI |
Atmel |
IC EEPROM 16K 2.7V 32PLCC |
Data Sheet |
Negotiable |
|
|||||
AT28BV16-25PC |
IC EEPROM 16KBIT 250NS 24DIP |
Data Sheet |
Negotiable |
|
||||||
AT28BV16-25PI |
Atmel |
IC EEPROM 16K 2.7V 24DIP |
Data Sheet |
Negotiable |
|
|||||
AT28BV16-25SC |
Atmel |
EEPROM 16k bit |
Data Sheet |
Negotiable |
|
