Product Summary

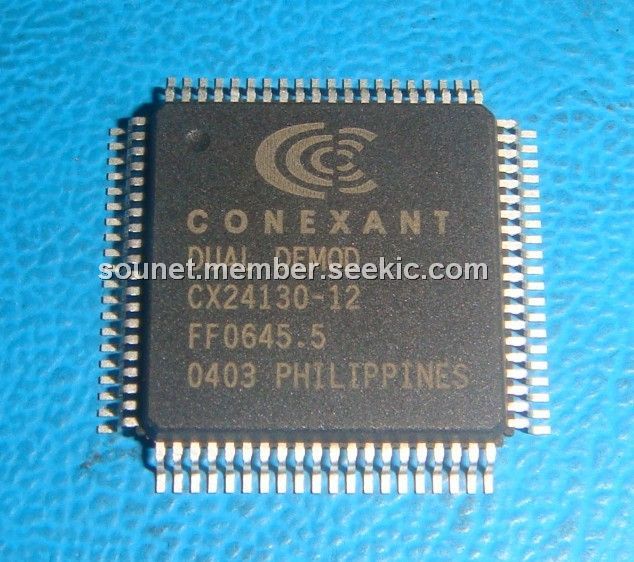

The CX24130-12 is a single-chip dual-stream QPSK/BPSK demodulator designed for satellite receiver systems. The CX24130-12 is ideal for applications such as personal video recorders (PVRs) that process dual incoming video streams to simultaneously play and record two different television programs. Other applications include digital video broadcasting/digital satellite system (DVB/DSS) set-top and PC receivers, and residential gateways. In addition, when combined with the CX24108 Satellite Tuner RF ICs, the CX24130-12 provides a complete dual broadband satellite front-end solution capable of operating from 10 to 30 Msps.
Parametrics
CX24130-12 absolute maximum ratings: (1)144-pin LQFP package; (2)External crystal frequency: 10 MHz; (3)Sampling frequency: 45, 60, 90 MHz; (4)Carrier tracking: ?sample frequency/8; (5)Viterbi decoding rates: 1/2, 2/3, 3/4, 4/5, 5/6, 6/7, and 7/8; (6)Output data interface: serial or parallel; (7)Supply voltage: +3.3V, +1.8V.
Features
CX24130-12 features: (1)Dual Stream QPSK/BPSK demodulation paths; (2)DVB/DSS compliant; (3)Symbol rates: 10 to 30 Msps; (4)Automatic acquisition; (5)Adaptive (FIR) equalizer; (6)nternal Viterbi and Reed-Solomon FEC; (7)Internal SNR and BER monitors; (8)DiSEqC Level 1.1 LNB control.

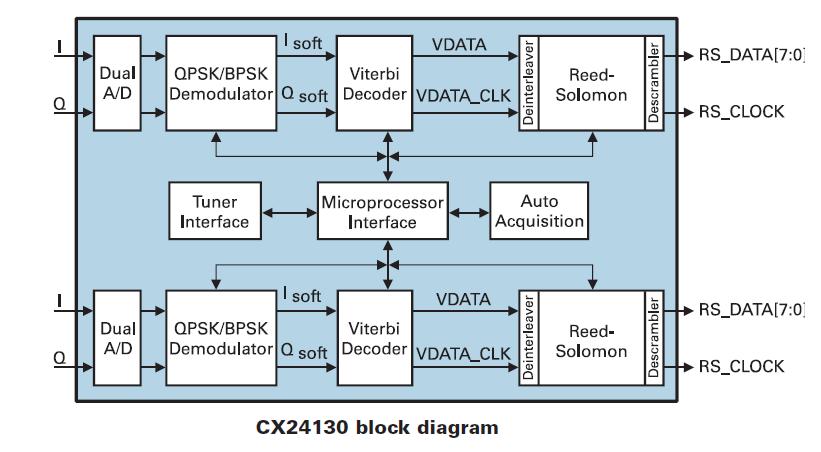

Diagrams
 |
