Product Summary

The MP7003 is a power module.

Parametrics

MP7003 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 600 V; (2)Peak one cycle surge forward current (D1, D2, D3, D4) (50 Hz, non-repetitive), IFSM: 220 A; (3)Forward current, IF: 25 A; (4)Junction temperature, Tj: 150℃; (5)Storage temperature range, Tstg: -40~125℃.

Features

MP7003 features: (1)Peak forward voltage, VFM:  1.0V typ, 1.2 V max when IF=12.5 A; (2)Peak forward voltage, VFM:  1.20V typ, 1.55 V max when IF=30 A; (3)Repetitive peak reverse Current, IRRM: 10μA max when VRRM=600 V; (4)Peak reverse current (D1, D2, D3, D4), Irr: 100 A max when IF=30 A; (5)Thermal resistance Rth (j-c): 3.5℃/W max.

Diagrams

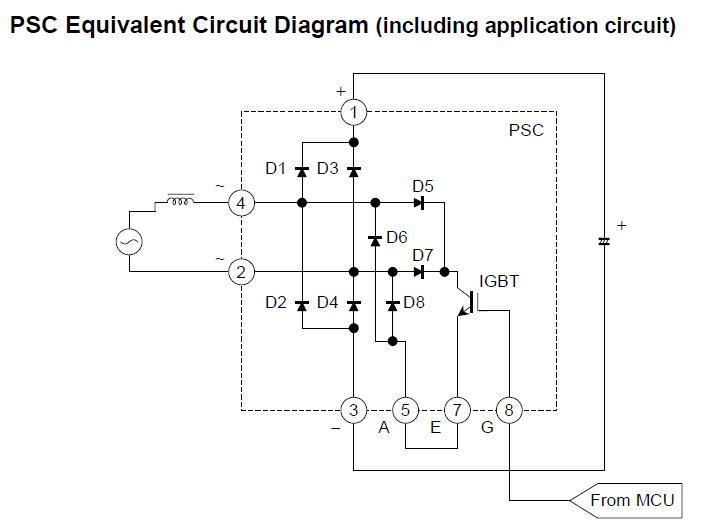

MP7003 PSC Equivalent Circuit Diagram
