Product Summary
The SN75467N is a monolithic high-voltage, high-current Darlington transistor array. The device consists of seven NPN Darlington pairs that features high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500mA. The Darlington pairs may be paralleded for higher current capability. Applications of the device include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.
Parametrics
SN75467N absolute maximumratings: (1)collector0emitter voltage: 100V; (2)input voltage: 30V; (3)peak collector current: 500mA; (4)output clamp current, IOK: 500mA; (5)total emitter-terminal current: -2.5A; (6)operating free-air temperature range, TA: 0 to 70℃; (7)storage temperature range: -65 to 150℃; (8)lead temperature: 260℃.
Features
SN75467N features: (1)500mA rated collector current (single output); (2)high voltage outputs: 100V; (3)output clamp diodes; (4)inputs compatible with various types of logic; (5)relay driver applications ; (6)higher-voltage versions ULN2001A, ULN2002A, ULN2003A, and ULN2004A, respectively, for commercial temperature range.

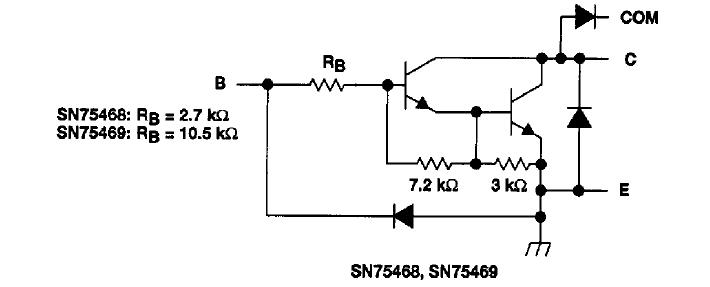

Diagrams
 |
