Product Summary

The FWH-500A is a high-speed fuse for the protection of semiconductor. The design and construction of the FWH-500A have been optimized to provide excellent performance, making it the ideal solution for medium power applications. Applications of the FWH-500A are: DC common bus, DC drives, Power converters/rectifiers, Reduced voltage starters.

Parametrics

FWH-500A absolute maximum ratings: (1)Volts: 150Vac; (2)Amps: 70-1000A; (3)IR: 100kA Sym. (70-400A); 200kA Sym. (450-1000A); 20kA @150Vdc (70-800A); 100kA @ 80Vdc (70-400A).

Features

FWH-500A features: (1)Low energy let-through (I2t); (2)Low watts loss; (3)Superior cycling capability; (4)Low arc voltage; (5)Excellent dc performance.

Diagrams

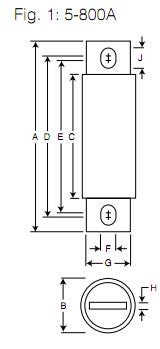

FWH-500A dimenions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FWH-500A
FWH-500A
Cooper Bussmann
Fuses 500VAC 500A High Speed Fuse
Data Sheet
0-1: $118.96
1-25: $114.63
25-50: $105.08
