Product Summary

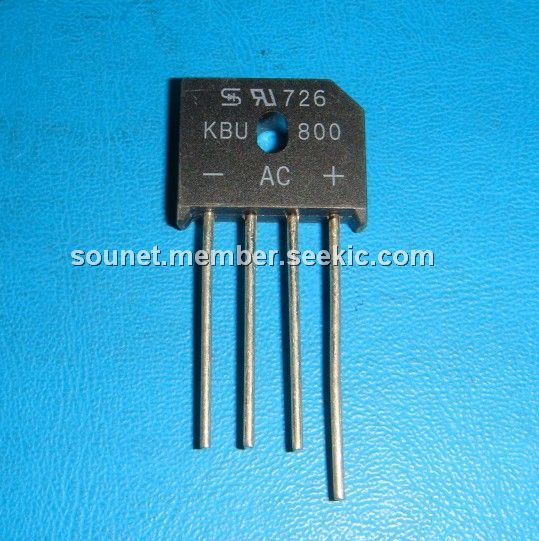

The KBU800 is a 8.0A bridge rectifier.
Parametrics
KBU800 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 50V; (2)RMS Reverse Voltage VR(RMS): 35V; (3)Average Rectified Output Current @TC = 100℃ IO: 8.0A; (4)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method)IFSM: 300A; (5)Forward Voltage (per element) @IF = 4.0A VFM: 1.0V; (6)Peak Reverse Current @TC = 25℃ IR: 10μA; At Rated DC Blocking Voltage @TC = 100℃ IR: 1.0mA; (7)Rating for Fusing (t < 8.3ms) I2t: 373A2s; (8)Typical Thermal Resistance RθJC: 7.5K/W; (9)Operating and Storage Temperature Range Tj, TSTG: -65 to +150℃.
Features
KBU800 features: (1)Diffused Junction; (2)Low Forward Voltage Drop ; (3)High Current Capability; (4)High Reliability; (5)High Surge Current Capability; (6)Ideal for Printed Circuit Boards; (7)UL Recognized File # E157705.

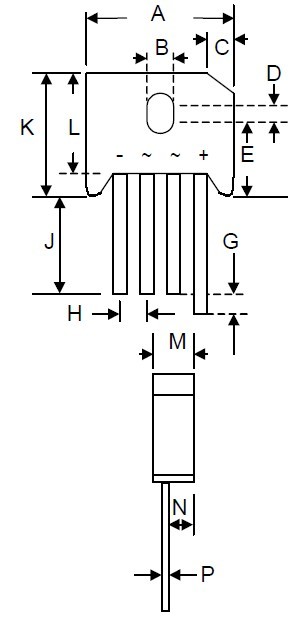

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBU800 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU800 THRU KBU810 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU8005 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU8005G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU8005G-G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU800G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU800G THRU KBU810G |
Other |
|
Data Sheet |
Negotiable |
|
||||
