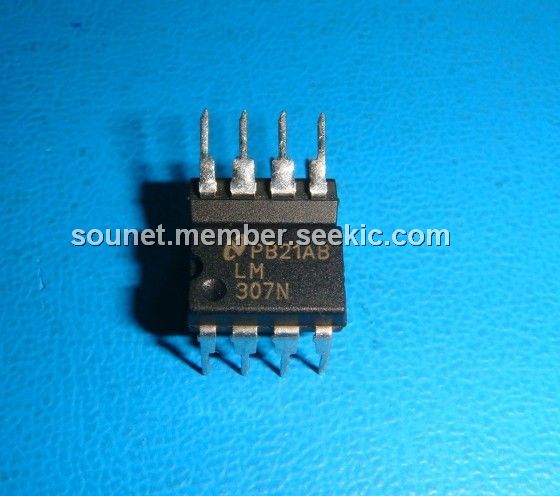

Product Summary

The LM307N is a complete, general purpose operational amplifier, with the necessary frequency compensation built into the chip. Advanced processing techniques make the input currents a factor of ten lower than industry standards like the 709. The LM307N offers the features of the LM101A, which makes its application nearly foolproof. In addition, the device provides better accuracy and lower noise in high impedance circuitry.

Parametrics

LM307N absolute maximum ratings: (1)Supply Voltage: ±18V; (2)TMIN TMAX Power Dissipation: 500 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short Circuit Duration: Continuous; (6)Operating Temperature Range (TA):: 0℃ to a70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec): 260℃.

Features

LM307N features: (1)Offset voltage 3 mV maximum over temperature; (2)Input current 100 nA maximum over temperature; (3)Offset current 20 nA maximum over temperature; (4)Guaranteed drift characteristics.

Diagrams

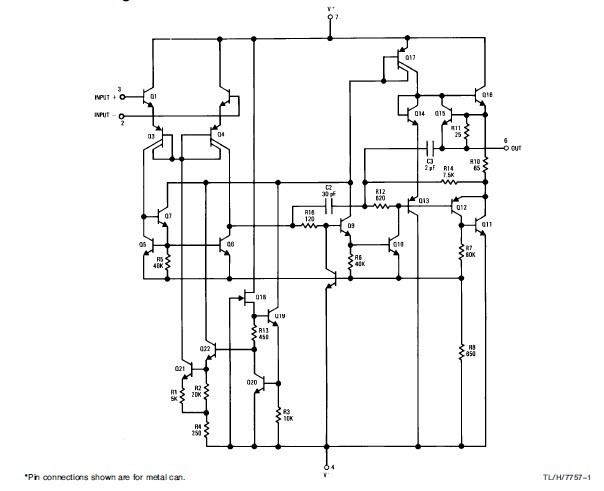

LM307N schematic diagram
