Product Summary

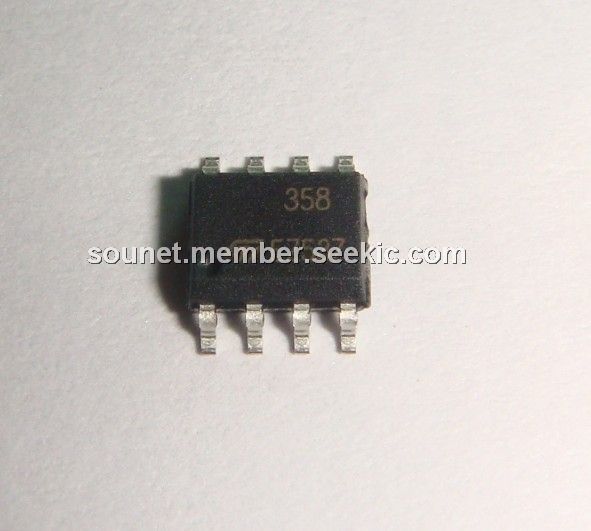

The LM358D is a low power dual operational amplifier. It consists of two independent, high-gain, internally frequency-compensated which were designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage. Application areas of the LM358D include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems.
Parametrics
LM358D absolute maxing ratings: (1)VCC Supply voltage: +/-16 or 32V; (2)Vi Input Voltage: -0.3 to +32V; (3)Vid Differential Input Voltage: +32 V; (4)Ptot Power Dissipation (1): 500 mW; (5)Output Short-circuit Duration (2): Infinite; (6)Iin Input Current (3): 20mA; (7)Toper Operating Free-air Temperature Range: 0 to +70℃; (8)Tstg Storage Temperature Range: -65 to +150℃; (9)Tj Maximum Junction Temperature: 150℃; (10)Rthja Thermal Resistance Junction to Ambient(4)SO8: 125℃/W; TSSOP8: 120℃/W; DIP8: 85℃/W; miniSO8: 190℃/W; (11)ESD HBM: Human Body Model(5): 300V; MM: Machine Model(6): 200V; CDM: Charged Device Model: 1.5kV.
Features
LM358D features: (1)Internally frequency compensated; (2)Large DC voltage gain: 100dB; (3)Wide bandwidth (unity gain): 1.1mHz(temperature compensated); (4)Very low supply current/op (500μA) essentially independent of supply voltage; (5)Low input bias current: 20nA(temperature compensated); (6)Low input offset voltage: 2mV; (7)Low input offset current: 2nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0V to (Vcc - 1.5V).
Diagrams
