Product Summary
The MM74HC373N is a high speed octal D-type latch. The device utilizes advanced silicon-gate CMOS technology. The MM74HC373N possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, the MM74HC373N is ideally suited for interfacing with bus lines in a bus organized system.
Parametrics
MM74HC373N absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±35 mA; (6)DC VCC or GND Current, per pin (ICC): ±70 mA; (7)Storage Temperature Range (TSTG): -65 to 150℃; (8)Power Dissipation (PD): 600 mW; (9)S.O. Package only: 500 mW; (10)Lead Temperature (TL) (Soldering 10 seconds): 260℃.
Features
MM74HC373N features: (1)Typical propagation delay: 18 ns; (2)Wide operating voltage range: 2 to 6 volts; (3)Low input current: 1 μA maximum; (4)Low quiescent current: 80 μA maximum; (5)Output drive capability: 15 LS-TTL loads.

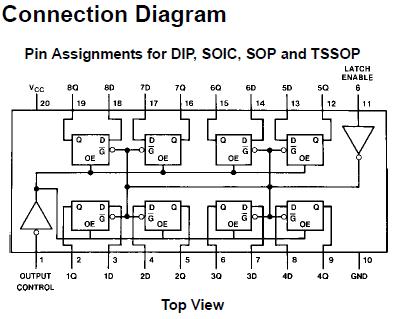

Diagrams

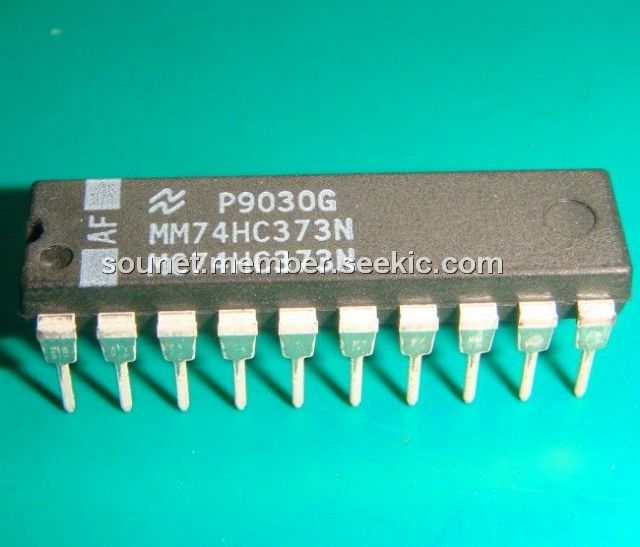

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC373N |
Fairchild Semiconductor |
Latches 3-STATE Oct D Latch |
Data Sheet |
Negotiable |
|
||||
|
MM74HC373N_Q |
Fairchild Semiconductor |
Latches 3-STATE Oct D Latch |
Data Sheet |
Negotiable |
|
||||
