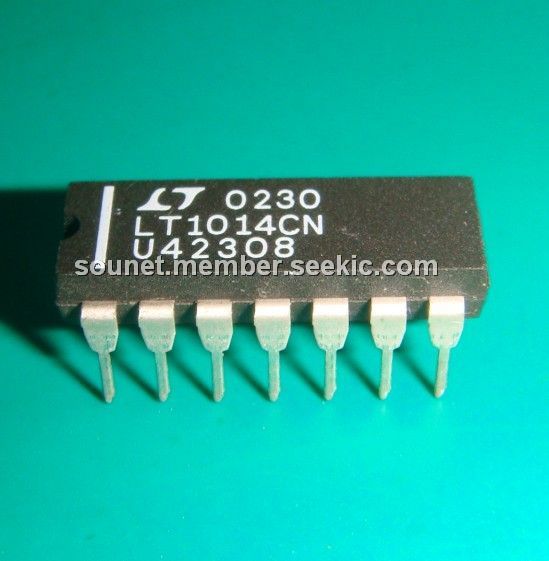

LT1014CN

quad operational amplifier, DIP, ±22V, 0.8nA, 0.1Hz to 10Hz, Low Voltage Noise

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~4.00

PartNumber:: LT1014CN

Brand:: Linear Technology - Linear | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kelly Huang's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-05

From Other Seller

Part Number:LT1014CN
US $0.80 - 4.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

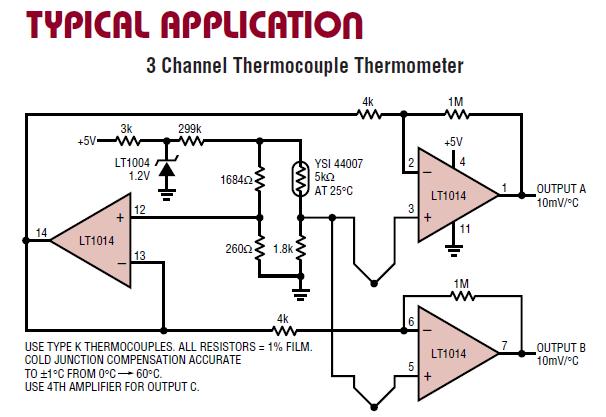

The LT1014CN is a quad operational amplifier. The LT1014CN is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The applications of the LT1014CN include Battery-Powered Precision Instrumentation, Strain Gauge Signal Conditioners, Thermocouple Amplifiers, Instrumentation Amplifiers, 4mA–20mA Current Loop Transmitters, Multiple Limit Threshold Detection, Active Filters and Multiple Gain Blocks. The LT1014CN can be operated off a single 5V power supply: input common mode range includes ground; the output can also swing to within a few millivolts of ground. Crossover distortion, so apparent on previous single-supply designs, is eliminated. A full set of specifications is provided with ±15V and single 5V supplies.

Parametrics

LT1014CN absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: –65 to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Operating Temperature Range: 0 to 70℃.

Features

LT1014CN features: (1)Single Supply Operation: Input Voltage Range Extends to Ground; Output Swings to Ground while Sinking Current; (2)Pin Compatible to 1458 and 324 with Precision Specs; (3)Guaranteed Offset Voltage: 150μV Max; (4)Guaranteed Low Drift: 2μV℃ Max; (5)Guaranteed Offset Current: 0.8nA Max; (6)Guaranteed High Gain: 5mA Load Current: 1.5 Million Min; 17mA Load Current: 0.8 Million Min; (7)Guaranteed Low Supply Current: 500μA Max; (8)Low Voltage Noise, 0.1Hz to 10Hz: 0.55μVp-p; (9)Low Current Noise Better than 0P-07, 0.07pA/Hz.
