Product Summary

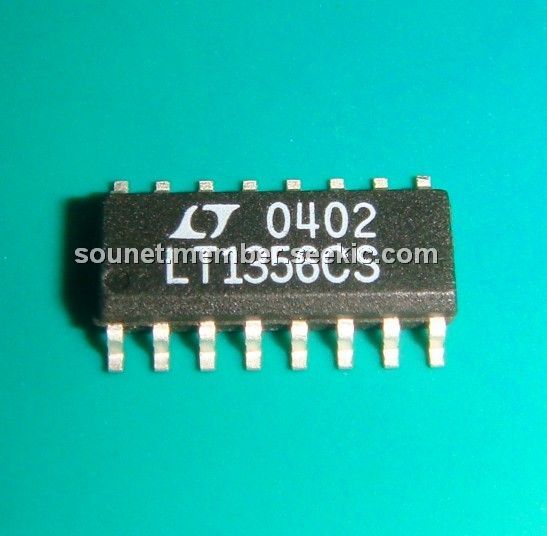

The LT1356CS is a dual and quad low power high speed operational amplifier with outstanding AC and DC performance. The LT1356CS features much lower supply current and higher slew rate than device with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the LT1356CS an ideal choice for data acquisition systems. Each output drives a 500W load to ±12.5V with ±15V supplies and a 150W load to ±3V on ±5V supplies. The LT1356CS is stable with any capacitive load making them useful in buffer applications.
Parametrics
LT1356CS absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 36V; (2)Differential Input Voltage (Transient Only): ±10V; (3)Input Voltage: ±VS; (4)Output Short-Circuit Duration: Indefinite; (5)Operating Temperature Range: –40 to 85℃; (6)Specified Temperature Range: –40 to 85℃; (7)Maximum Junction Temperature: 150℃; (8)Storage Temperature Range: –65 to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1356CS features: (1)12MHz Gain Bandwidth; (2)400V/ms Slew Rate; (3)1.25mA Maximum Supply Current per Amplifier; (4)Unity-Gain Stable; (5)C-LoadTM Op Amp Drives All Capacitive Loads; (6)10nV/Hz Input Noise Voltage; (7)800mV Maximum Input Offset Voltage; (8)300nA Maximum Input Bias Current; (9)70nA Maximum Input Offset Current; (10)12V/mV Minimum DC Gain, RL=1k; (11)230ns Settling Time to 0.1%, 10V Step; (12)280ns Settling Time to 0.01%, 10V Step; (13)±12.5V Minimum Output Swing into 500W; (14)±3V Minimum Output Swing into 150W; (15)Specified at ±2.5V, ±5V, and ±15V.

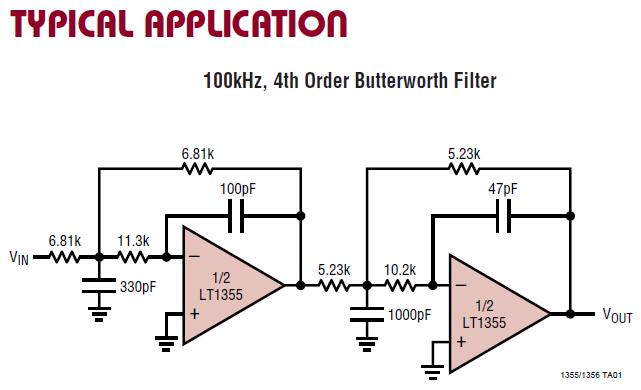

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1356CS |
|
IC OP-AMP HISPD 12MHZ QUAD16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1356CS#PBF |
|
IC OP-AMP HISPD 12MHZ QUAD16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1356CS#TR |
|
IC OPAMP QUAD 12MHZ HS LP 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1356CS#TRPBF |
|
IC OP-AMP HISPD 12MHZ QUAD16SOIC |
Data Sheet |
|
|
||||||||||
