Product Summary
The MM74C74N dual D flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistor. Each flipflop has independent data, preset, clear and clock inputs and Q and Q outputs. The applications of the MM74C74N include: Automotive, Data terminals, Instrumentation, Medical electronics, Alarm system, Industrial electronics, Remote metering, Computers.
Parametrics
MM74C74N absolute maximum ratings: (1)Voltage at Any Pin: -0.3V to VCC +0.3V; (2)Operating Temperature Range: -40℃ to +85℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Power Dissipation Dual-In-Line: 700 mW; Small Outline: 500 mW; (5)Lead Temperature (Soldering, 10 seconds): 260℃; (6)Operating VCC Range: 3V to 15V; (7)VCC(Max): 18V.
Features
MM74C74N features: (1)Supply voltage range: 3V to 15V; (2)Tenth power TTL compatible: Drive 2 LPT2L loads; (3)High noise immunity: 0.45 VCC (typ.); (4)Low power: 50nW (typ.); (5)YMedium speed operation: 10 MHz (typ.)with 10V supply.

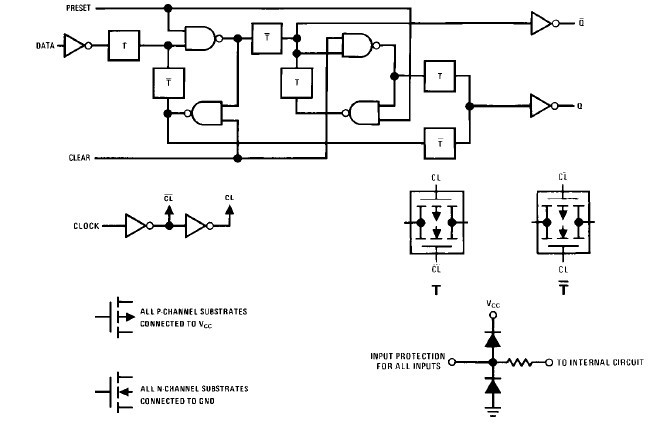

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74C74N |
Fairchild Semiconductor |
Flip Flops Dl D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
|
MM74C74N_Q |
Fairchild Semiconductor |
Flip Flops Dl D-Type Flip-Flop |
Data Sheet |
Negotiable |
|
||||
