Product Summary

The MOC8102 is a 6-pin DIP optoisolator for power supply applications. The MOC8102 is suitable for the switchmode power supplies (Feedback Control), AC line/digital logic isolation, interfacing and coupling systems of different potentials and impedances.

Parametrics

MOC8102 maximum ratings: (1)Forward Current — Continuous IF: 60 mA; (2)Forward Current — Peak (PW = 100 ms, 120 pps) IF(pk): 1 A; (3)Reverse Voltage VR: 6 Volts; (4)LED Power Dissipation @ TA = 25℃: PD 120mW; (5)Derate above 25℃: 1.41 mW/℃.

Features

MOC8102 features: (1)Closely matched current transfer ratio (CTR) minimizes unit-to-unit Variation; (2)Narrow (CTR) windows that translate to a narrow and predictable open loop gain Window; (3)Very Low Coupled Capacitance along with no chip to pin 6 base connection for minimum noise susceptibility.

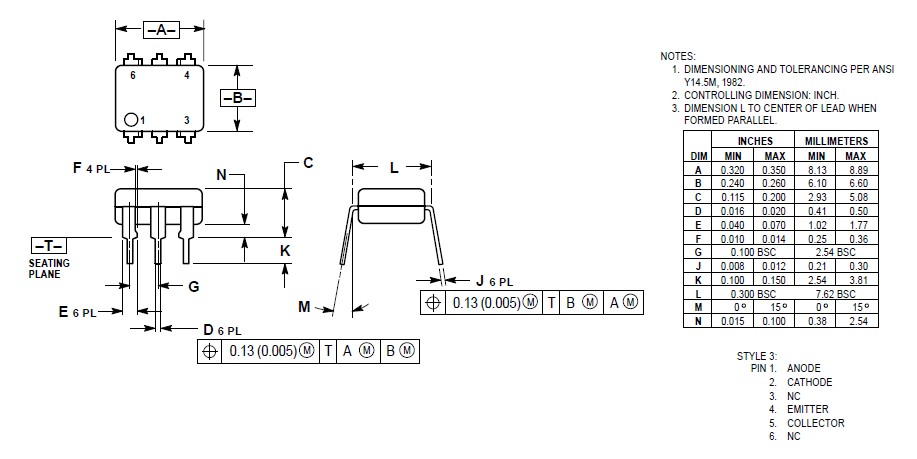

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MOC8102
MOC8102
Vishay Semiconductors
Transistor Output Optocouplers Phototransistor Out Single CTR 73-117%
Data Sheet
0-1: $0.37
1-10: $0.32
10-100: $0.25
100-250: $0.22
MOC8102_Q
MOC8102_Q
Fairchild Semiconductor
Transistor Output Optocouplers Optocoupler Phototrans No Base
Data Sheet
Negotiable
MOC8102300
MOC8102300
Fairchild Semiconductor
Transistor Output Optocouplers 6-Pin Optocoupler Phototrans No Base
Data Sheet
Negotiable
MOC8102300W
MOC8102300W
Fairchild Semiconductor
Transistor Output Optocouplers 6-Pin Optocoupler Phototrans No Base
Data Sheet
Negotiable
MOC81023S
MOC81023S
Fairchild Semiconductor
Transistor Output Optocouplers 6-Pin Optocoupler Phototrans No Base
Data Sheet
Negotiable
MOC81023SD
MOC81023SD
Fairchild Semiconductor
Transistor Output Optocouplers 6-Pin Optocoupler Phototrans No Base
Data Sheet
Negotiable
MOC81023SDL
MOC81023SDL
Fairchild Semiconductor
Transistor Output Optocouplers Optocoupler Phototrans No Base
Data Sheet
Negotiable
MOC8102S
MOC8102S
Fairchild Semiconductor
Transistor Output Optocouplers OPTOCLR SM-DIP6
Data Sheet
Negotiable
