Product Summary
The Intel N80C188XL20 is a Modular Core re-implementation of the 80C186 microprocessor. It offers higher speed and lower power consumption than the standard 80C186 but maintains 100% clock-for-clock functional compatibility. Packaging and pinout are also identical.
Parametrics
N80C188XL20 absolute maximum ratings: (1)Ambient Temperature under: 0 to +70℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to ground: 1.0V to +7.0V; (4)Package Power Dissipation: 1W; (5)Not to exceed the maximum allowable die temperature based on thermal resistance of the package.
Features
N80C188XL20 features: (1)Completely Object Code Compatible with Existing 8086/8088 Software and Has 10 Additional Instructions over 8086/8088; (2)Direct Addressing Capability to 1 MByte Memory and 64 Kbyte I/O; (3)Available in 80-Pin: Quad Flat Pack (EIAJ), Shrink Quad Flat Pack (SGFP); (4)Available in Extended Temperature Range: -40℃ to +85℃.

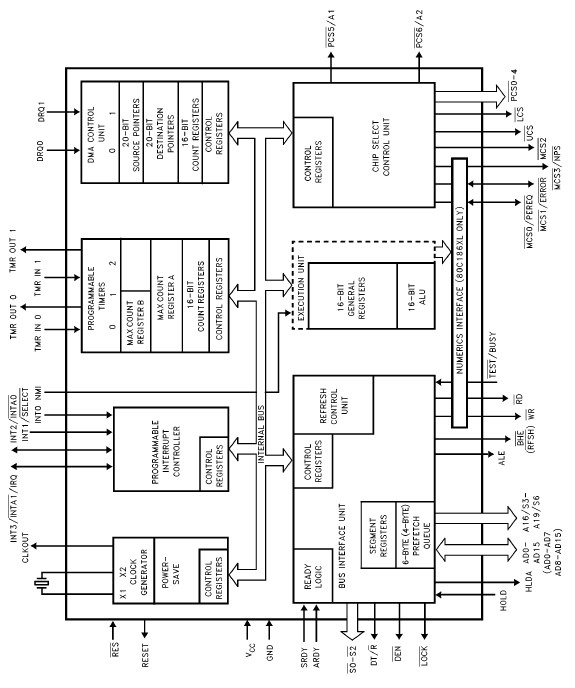

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

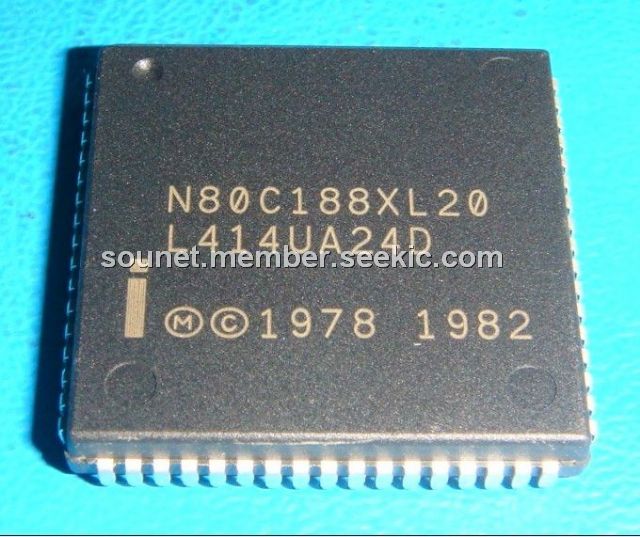

N80C188XL20 |
IC MPU 16BIT 5V 20MHZ 68PLCC |
Data Sheet |
Negotiable |
|
||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
N80C186-25 |
Other |
Data Sheet |
Negotiable |
|
||||||
N80C186EA25 |
IC MPU 16-BIT 5V 25MHZ 68-PLCC |
Data Sheet |
Negotiable |
|
||||||
N80C186EB25 |
IC MPU 16-BIT 5V 25MHZ 84-PLCC |
Data Sheet |
Negotiable |
|
||||||
N80C186XL12 |
IC MPU 16BIT 5V 12MHZ 68PLCC |
Data Sheet |
Negotiable |
|
||||||
N80C186XL20 |
IC MPU 16BIT 5V 20MHZ 68PLCC |
Data Sheet |
Negotiable |
|
||||||
N80C186XL25 |
IC MPU 16-BIT 5V 25MHZ 68-PLCC |
Data Sheet |
Negotiable |
|
