Product Summary

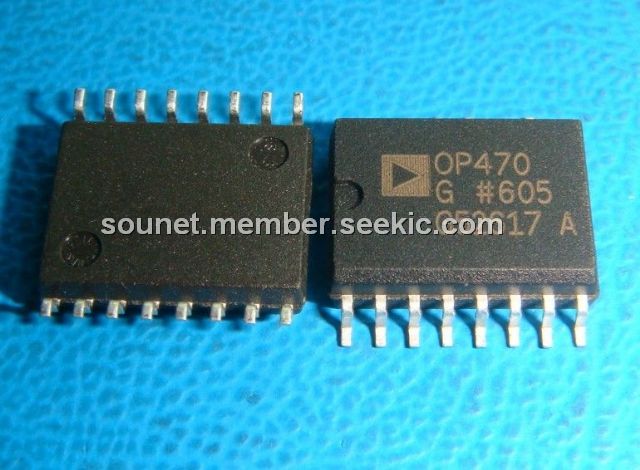

The OP470GSZ is a high-performance monolithic quad operational amplifier with exceptionally low voltage noise, 5 nV/÷Hz at 1 kHz max, offering comparable performance to ADI’s industry standard OP27. The OP470GSZ conforms to the industry standard 14-lead DIP pinout. It is pin compatible with the LM148/149, HA4741, HA5104, and RM4156 quad op amps and can be used to upgrade systems using the OP470GSZ.
Parametrics
OP470GSZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Differential Input Voltage2: ±1.0 V; (3)Differential Input Current2: ±25 mA; (4)Input Voltage: Supply Voltage; (5)Output Short-Circuit Duration: Continuous; (6)Storage Temperature Range P, Y Package: –65℃ to +150℃.
Features
OP470GSZ features: (1)Very Low-Noise, 5 nV/÷Hz @ 1 kHz Max; (2)Excellent Input Offset Voltage, 0.4 mV Max; (3)Low Offset Voltage Drift, 2 μV/℃ Max; (4)Very High Gain, 1000 V/mV Min; (5)Outstanding CMR, 110 dB Min; (6)Slew Rate, 2 V/μs Typ; (7)Gain-Bandwidth Product, 6 MHz Typ; (8)Industry Standard Quad Pinouts; (9)Available in Die Form.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP470GSZ |
|
IC OPAMP GP 6MHZ QUAD LN 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP470GSZ-REEL |
|
IC OPAMP GP 6MHZ QUAD LN 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
