Product Summary
The PC87541V-VPC is a high sensitivity, low collector dark current, high collector-emitter voltage type photocoupler. The applications of the PC87541V-VPC are:Programmable controllers; System appliances, measuring instruments Copiers, automatic vending machines Signal transmission between circuits of different potentials and impedances.
Parametrics
PC87541V-VPC absolute maximum ratings: (1)Forward current IF 50 mA; (2)Reverse voltage VR 6 V; (3)Power dissipation P 70 mW; (4)Collector-emitter voltage VCEO 70 V; (5)Emitter-collector voltage VECO 0.1 V; (6)Collector current IC 80 mA; (7)Collector power dissipation PC 150 mW; (8)Total power dissipation P tot 200 mW; (9)Operating temperature T opr - 30 to + 100 ℃; (10)Storage temperature T stg - 55 to + 125 ℃.
Features
PC87541V-VPC features: (1)Low collector dark current; (2)High current transfer ratio; (3)High collector-emitter voltage (VCEO : 70V); (4)High isolation voltage between input; (5)Compact dual-in-line package; (6)Recognized by UL, file No. E64380.

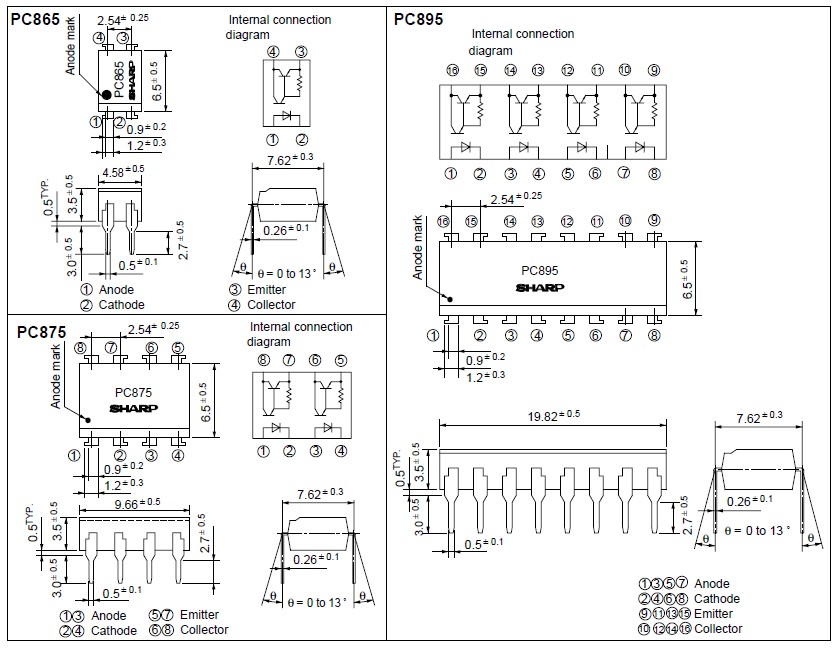

Diagrams
 |
