Product Summary

The PS21562-SP is a 600V/5A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. It can be used in AC100V~200V inverter drive for small power motor control.

Parametrics

PS21562-SP absolute maximum ratings: (1)VCC Supply voltage: 450V; (2)VCC(surge) Supply voltage (surge): 500V; (3)VCES Collector-emitter voltage: 600V; (4)±IC Each IGBT collector current: 5A; (5)±ICP Each IGBT collector current (peak): 10A; (6)PC Collector dissipation: 16.7W; (7)Tj Junction temperature: -20~+125℃.

Features

PS21562-SP features: (1)For upper-leg IGBTS: Drive circuit, High voltage isolated high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS: Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3, 5V line CMOS/TTL compatible. (High Active).

Diagrams

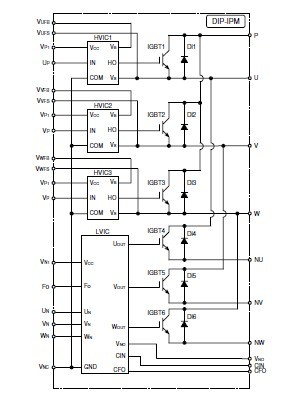

PS21562-SP internal circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PS21562-SP
PS21562-SP

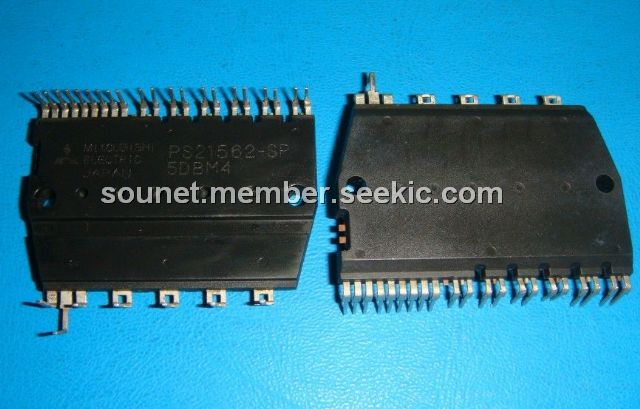

MOD IPM 600V 5A MINI DIP

Data Sheet

Negotiable
