Product Summary

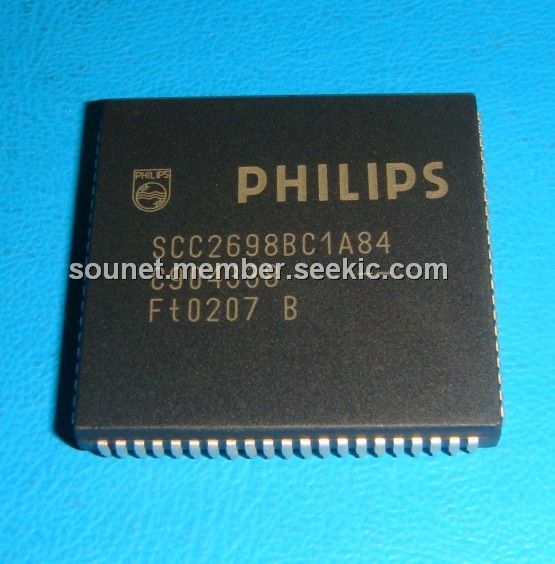

The SCC2698BC1A84 is a single chip MOS-LSI communications device that provides eight full-duplex asynchronous receiver or transmitter channels in a single package. The SCC2698BC1A84 is fabricated with CMOS technology which combines the benefits of high density and low power consumption.The operating speed of the SCC2698BC1A84 can be selected independently as one of 26 fixed baud rates, a 16X clock derived from a programmable counter/timer, or an external 1X or 16X clock.The device provides a power-down mode in which the oscillator is frozen but the register contents are stored. This results in reduced power consumption on the order of several magnitudes. The SCC2698BC1A84 is fully TTL compatible and operates from a single +5V power supply.
Parametrics
SCC2698BC1A84 absolute maximum ratings: (1)TSTG, Storage temperature range: –65 to +150℃; (2)VCC, Voltage from VDD to GND: –0.5 to +7.0 V; (3)VS, Voltage from any pin to ground: –0.5 to VCC +0.5 V; (4)PD, Power dissipation: 1 W.
Features
SCC2698BC1A84 features: (1)Parity, framing, and overrun error detection; (2)False start bit detection; (3)Line break detection and generation; (4)Programmable channel mode; (5)Normal (full-duplex), automatic echo, local loop back, remote loopback; (6)Four multi-function programmable 16-bit counter/timers; (7)Four interrupt outputs with eight maskable interrupting conditions; (8)for each output; (9)On-chip crystal oscillator; (10)TTL compatible; (11)Single +5V power supply with low power mode; (12)Eight multi-purpose output pins; (13)Sixteen multi-purpose I/O pins; (14)Sixteen multi-purpose Input pins with pull-up resistors;(15)Eight full-duplex independent asynchronous receiver/transmitters; (16)Quadruple buffered receiver data register.

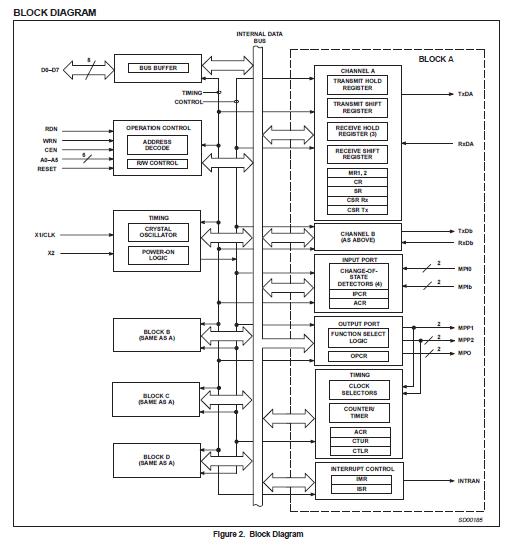

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SCC2698BC1A84 |
NXP Semiconductors |
UART Interface IC 8CH. UART ENHANCED |
Data Sheet |
Negotiable |
|
||||||||||||
|
SCC2698BC1A84,512 |
NXP Semiconductors |
UART Interface IC 8CH. UART ENHANCED |
Data Sheet |
|
|
||||||||||||
|
SCC2698BC1A84,518 |
NXP Semiconductors |
UART Interface IC 5V INDUSTRIAL UART 8 CHANNEL |
Data Sheet |
|
|
||||||||||||
