Product Summary

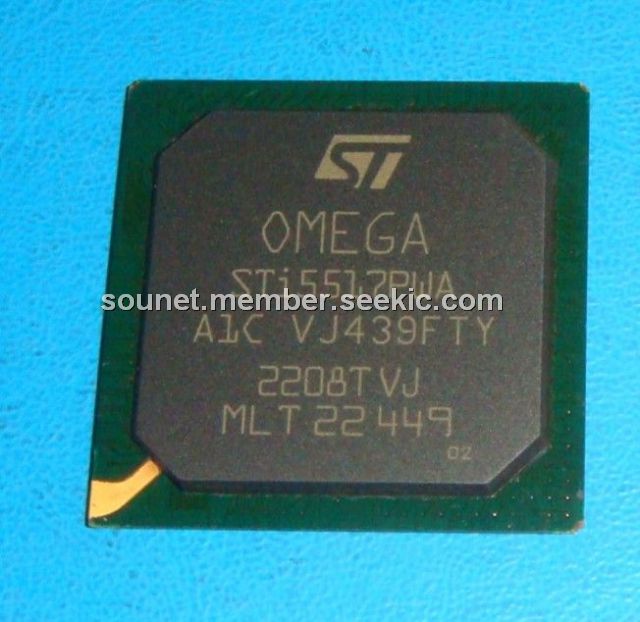

The STI5517PWA is a Low-cost set-top box decoder. It integrates more core STB functions into a single device than ever before, offering STB manufacturers the opportunity to build cost-effective solutions powered by devices from the leading supplier of MPEG-2 ICs. Used with ST’s established demodulator devices, the STI5517PWA form a complete chipset for low-cost STBs across all application areas. The STI5517PWA contains additional advanced features: it supports RGB16 graphics (with antiflicker filtering) as an alternative image format for the OSD plane. With an integrated highperformance DMA engine, it is ideal for applications requiring high-resolution graphics. The STI5517PWA has built-in D1 and PCM input interfaces to allow the IC to be used in applications requiring legacy analog support.
Features
STI5517PWA features: (1)180 MHz 32-bit ST20 CPU: 8 Kbytes internal SRAM, 8 Kbytes of I-cache and 8 Kbytes of D-cache; (2)Integrated transport demultiplexer: DES, DVB and ICAM descramblers, Support for more than 48 PID slots; (3)MPEG-2 MP@ML video decoder: Fully programmable horizontal and vertical SRCs; (4)Audio features: MPEG-1 layers I/II decoding (MP3 option), Dolby. Digital 5.1 down-mixed to 2 channels, Dolby.Pro Logic compatible, SRS. TruSurround. virtual surround sound, PCM audio input; (5)Integrated audio DACs; (6)Graphics/display: 5 display planes (background, video, still,; (7)OSD and cursor), 2, 4 and 8 bpp CLUT graphics, RGB16 graphics; (8)PAL/NTSC/SECAM video encoder: RGB, CVBS, Y/C and YUV outputs with 10-bit DACs, Encoding of CGMS, teletext, WSS, VPS, closed caption, Macrovision 7.01 copy protection; (9)Interfaces: D1 input, POD and dual DVB common interface, 5 ASCs (UARTs) with Tx and Rx FIFOs, 6 x 8-bit banks of parallel I/O, 2 smartcard interfaces and clock generators, 4 PWM channels, Multichannel IR transmitter/receiver, Low power/RTC/watchdog controller; (10)Package PBGA 35 x 35 (388).

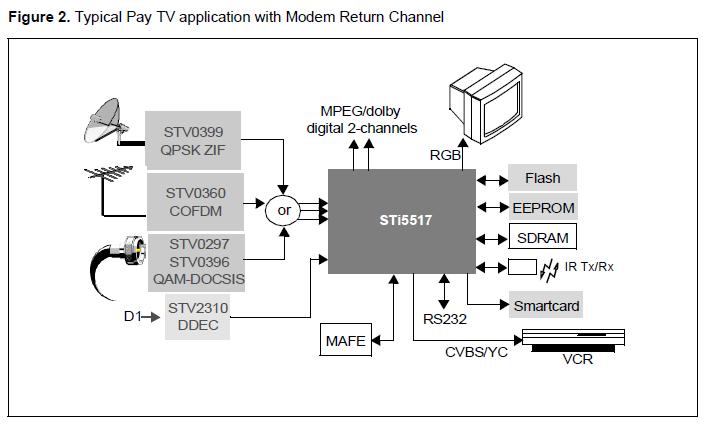

Diagrams
 |
