Product Summary
The TC4538BF is a dual precison retriggerable/resettable monostable multivibrator. The device is possible to set a broad range of output pulse widths.
Parametrics
TC4538BF absolute maximum ratings: (1)DC supply voltage, VDD: Vss-0.5 to Vss+20V; (2)input voltage, VIN: Vss-0.5 to VDD+0.5V; (3)output voltage, VOUT: VSS-0.5 to VDD+0.5V; (4)DC input current, IIN: ±10mA; (5)power dissipation, PD: 300(DIP)/180(SOIC)mW; (6)operating temperature range, Topr: -40 to 85℃; (7)storage temperature range, Tstg: -65 to 150℃.
Features
TC4538BF features: (1)twOUT=10ms±5% (at RX=100kΩ, Cx=0.1μF, VDD=10V).

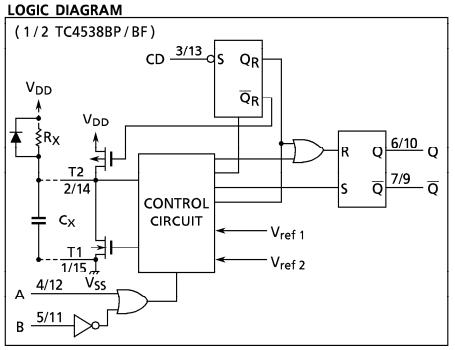

Diagrams
