Product Summary

The DG441DY is a monolithic CMOS analog switch. The DG441DY includes four independent single pole single throw (SPST) analog switches, TTL and CMOS compatible digital inputs, and a voltage reference for logic thresholds. The applications of the DG441DY include Audio Switching, Battery Operated Systems, Data Acquisition, Hi-Rel Systems, Sample and Hold Circuits, Communication Systems and Automatic Test Equipment.

Parametrics

DG441DY absolute maximum ratings: (1)V+ to V- : 44.0V; (2)GND to V-: -25V; (3)GND to V+ :+34V; (4)Digital Inputs, VS, VD: (V-) -2V to (V+) + 2V or 30mA, Whichever Occurs First; (5)Continuous Current (Any Terminal): 30mA; (6)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max): 100mA.

Features

DG441DY features: (1)ON Resistance (Max):85Ω; (2)Low Power Consumption (PD): <1.6mW; (3)Fast Switching Action, tON (Max): 250ns; tOFF (Max): 120ns; (4)Low Charge Injection; (5)Upgrade from DG201A, DG202; (6)TTL, CMOS Compatible; (7)Single or Split Supply Operation; (8)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

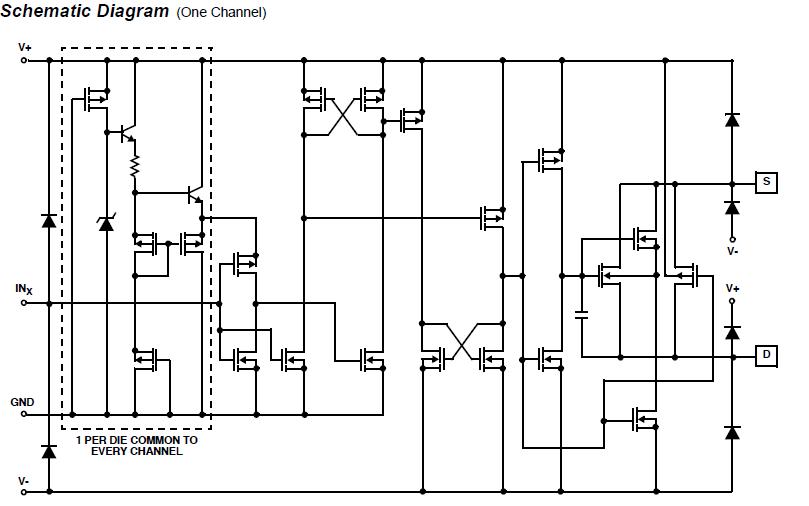

DG441DY schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DG441DY
DG441DY
Vishay/Siliconix
Analog Switch ICs SPST Analog Switch
Data Sheet
0-50: $1.30
50-100: $1.15
100-250: $1.03
250-500: $0.95
