Product Summary

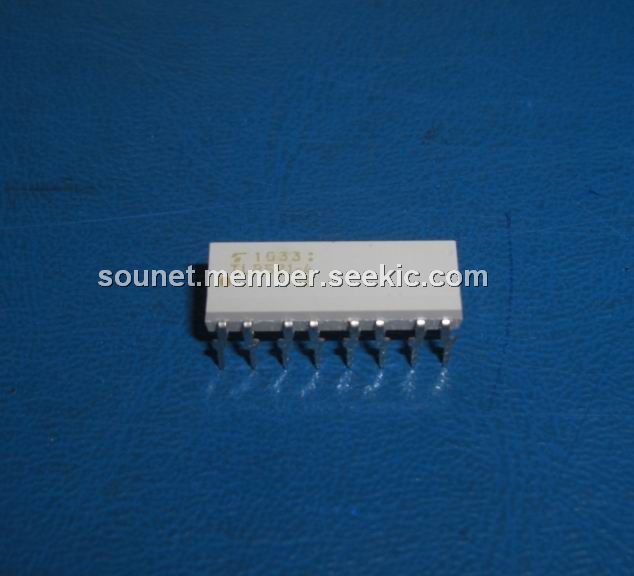

The TLP521-4 optically coupled isolator consists of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages. The applications of TLP521-4 are: (1)Computer terminals; (2)Industriasystems controllers; (3)Measuring instruments; (4)Signatransmission between systems of different potentials and impedances.
Parametrics
TLP521-4 absolute maximum ratings: (1)Storage Temperature: -55℃ to + 125℃; (2)Operating Temperature: -30℃ to + 100℃; (3)Lead Soldering Temperature: 260℃.
Features
TLP521-4 features: (1)Options: 10mm lead spread - add G after part no; Surface mount - add SM after part no; Tape&ree- add SMT&R after part no.; (2)High Current Transfer Ratio ( 50% min); (3)High Isolation Voltage (5.3kVRMS, 7.5kVPK ); (4)High BVCEO ( 55Vmin ); (5)All electrical parameters 100% tested; (6)Custom electrical selections available.

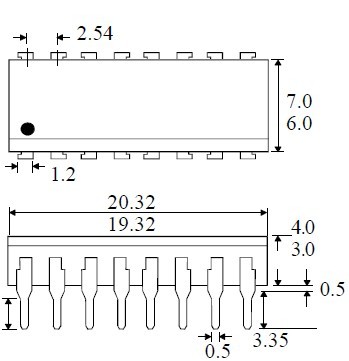

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
TLP521-4 |
Other |
Data Sheet |
Negotiable |
|
||||||
TLP521-4GB |
Other |
Data Sheet |
Negotiable |
|
