Product Summary

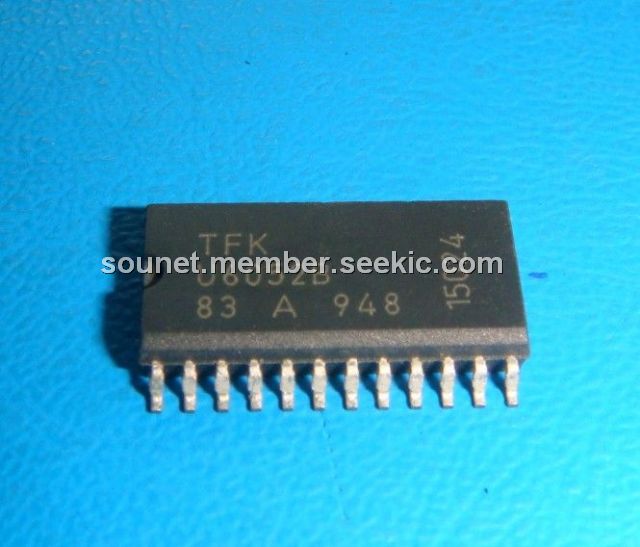

The U6052B is a local multiplex system. The applications of the U6052B include permanent scanning of 8 switch-positions, serial data transmission via a single data line and driving up 8 relay.
Parametrics
U6052B absolute maximum ratings: (1)supply voltage no operation 60s: 25 V; (2)ambient temperature range: -40 to +85℃; (3)storage temperature range: -55 to +125℃; (4)junction temperature: 150℃; (5)power dissipation: 810 mW at Tamb=85℃.
Features
U6052B features: (1)only a single line is necessary; (2)quadruple comparison of the data signal for high transmission safety; (3)all outputs switched off if data line is disturbed; (4)short circuit detection of the integrated relay driver; (5)transmitter and receiver prepared for master/slave operation; (6)reduced power dissipation by pulsed driver outputs; (7)transmitter data output short circuit protected.

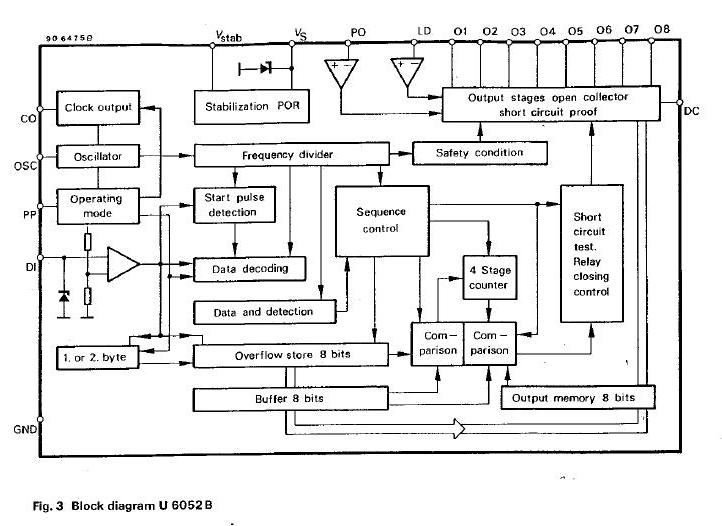

Diagrams
 |
