Product Summary

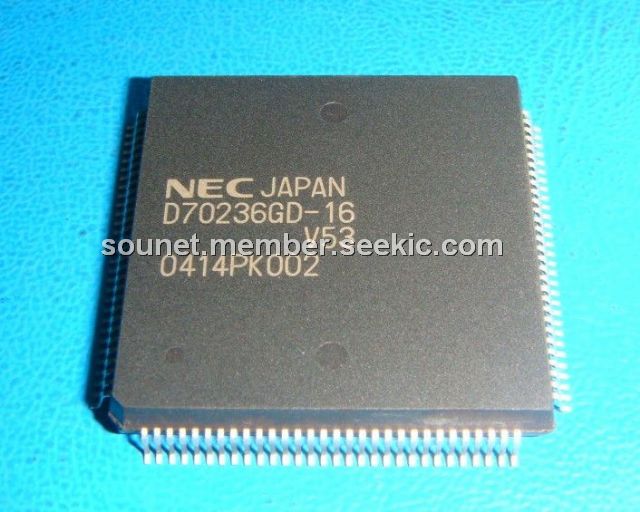

The UPD70236GD-16 is a 16-Bit microprocessor high-speed high-intergration CMOS. The UPD70236GD-16 is a high speed high integration 16 bit CMOS miroprocessor with a CPU that is object and source code compatible with the V20/V30. Integrated on the same die is a 4 channel DMA controller, a USRT, three timer, an interrupt controller a refresh controller, a clock generator and a bus controller.
Parametrics
UPD70236GD-16 absolute maximum ratings: (1)Power supply voltage, VDD: -0.5 to 7.0V; (2)Input voltage, VI: -0.5 to VDD +0.3V; (3)Clock input voltage, VK: -0.5 to VDD +1.0V; (4)Output voltage, VO: -0.5 to VDD +0.3V; (5)Output short ciruit current, Io: 50mA; (6)Operating temperature, TOPT: -10 to + 70℃; (7)Storage temperature, Tstg: -65 to 150℃.
Features
UPD70236GD-16 features: (1)High speed, V30 compatible CPU; (2)Dual bus architecture; (3)8 byte instruction queue; (4)Expanded LIM 4.0 compatible ; (5)Four DMA channels; (6)On chip serial I/O controller.

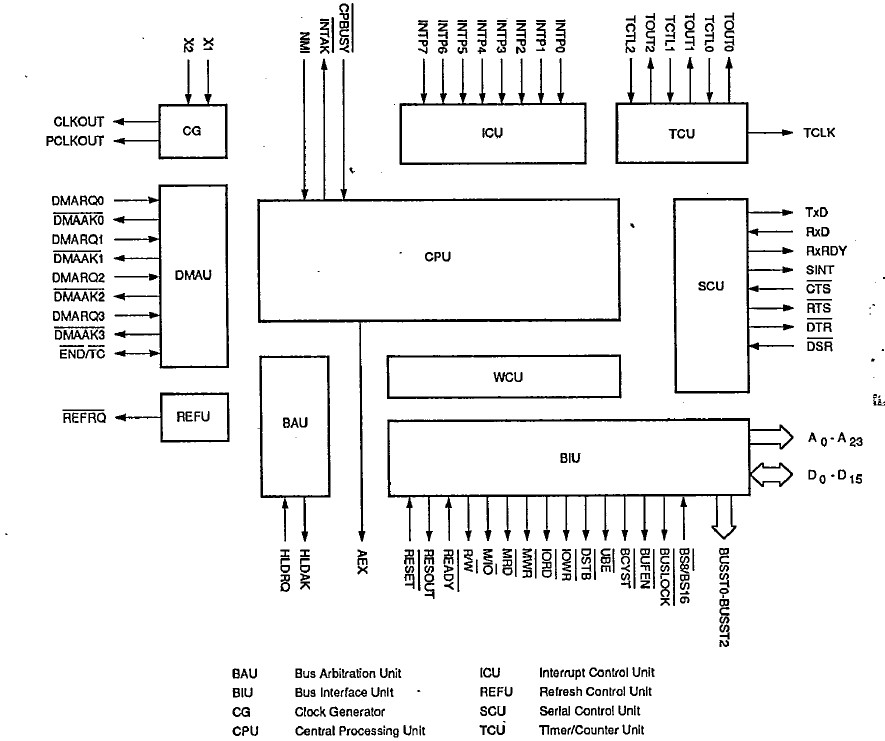

Diagrams
![]() |
