Product Summary

The VN800 is a mobile IGP chipset. The device offers the latest in VIA mobile technologies such as the highly efficient VIA V4 bus interface, VIA Flexi-Bus Technology, advanced power management features and support for DDR2. The VN800 features a high bandwidth VIA V4 bus to allow communication between the North and South bridges at 533MB/sec. When combined with solutions such as the market-leading VN800 South Bridge and a broad array onf VIA companion chips, the VN800 provides a comprehensive range of storage, multimedia and connectivity features, including native Serial ATA and support for 6-channel or 8-channel VIA Vinyl Audio, VIA Velocity Gigabit Ethernet and wireless LAN connectivity, USB2.0, and 1394.

Features

VN800 features: (1)Full support for VIA C7-M processors as well as support for the latest Intel Pentium M processors ; (2)Supports 800/533/400MHz Front Side Bus Settings; (3)Supports up to 4GB DDR2 or DDR Memory; (4)V-Link 533 MB/s high bandwidth North/South Bridge interconnect; (5)Full Featured Accelerated Graphics Port (AGP) compliant with AGP 8X/4X; (6)Integrated VIA UniChrome Pro Graphics; (7)Optimized Unified Memory Architecture (UMA); (8)200MHz Graphics Engine Clock with separated 128-bit data paths; (9)128-bit 2D and 3D Graphics Engine; (10)Chromotion CE Video Display Engine.

Diagrams

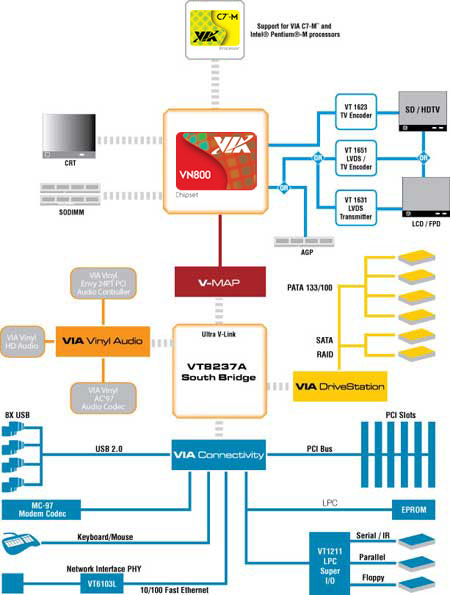

VN800 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VN800
VN800

Other


Data Sheet

Negotiable
