Product Summary

The WPC8763LDG is highly integrated embedded controllers (EC) with an embedded RISC core and integrated advanced functions. The WPC8763LDG is targeted for a wide range of portable applications. The WPC8763LDG incorporates the CompactRISC CR16CPlus core (a high-performance 16-bit RISC processor), on-chip ROM and RAM memories, system support functions and a Flash Interface Unit (FIU) that interfaces directly with external SPI flash memory devices.

Features

WPC8763LDG features: (1)Shared BIOS flash memory; (2)Support for SPI flash memories; (3)Flash page programing support; (4)MCE-compliant Consumer Infrared (CIR) Port; (5)Fast Infrared Port (FIR, IrDA 1.1 compliant) ; (6)High-accuracy, high-speed ADC; (7)Up to 88 GPIO ports (including keyboard scanning) with a variety of wake-up events; (8)16-bit RISC core, with up to 4 Mbytes of external address space, running at up to 25 MHz; (9)128-pin LQFP package.

Diagrams

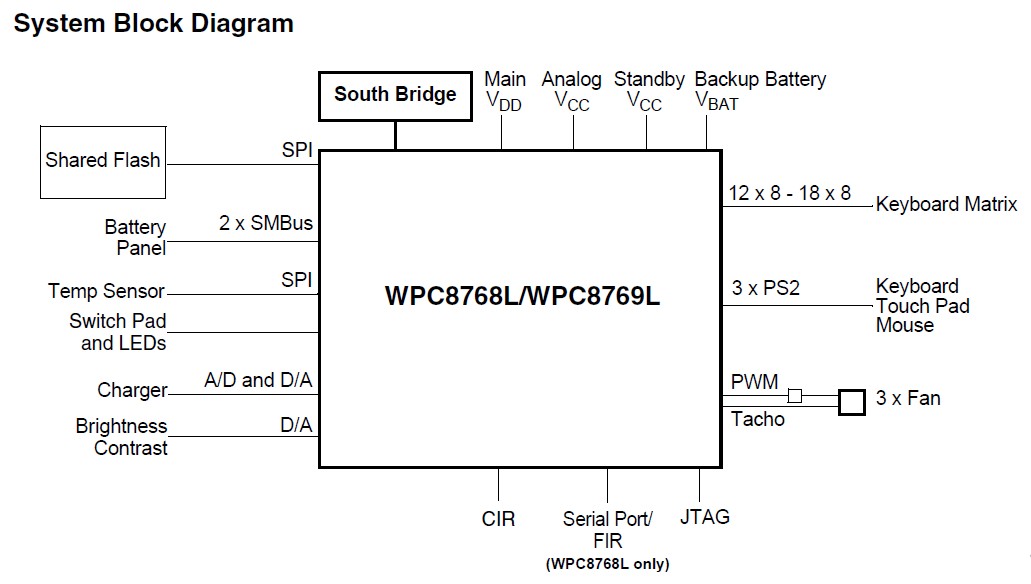

WPC8763LDG System Block Diagram
