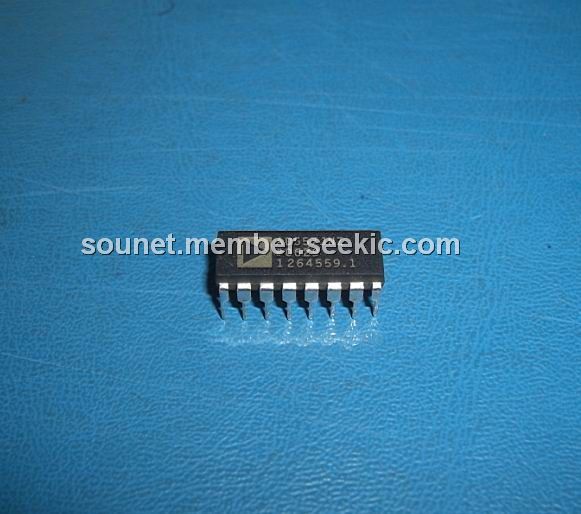

Product Summary

The AD557JNZ is a complete voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system. The low cost and versatility of the AD557JNZ is the result of continued development in monolithic bipolar technologies.

Parametrics

AD557JNZ absolute maximum ratings: (1)VCC to Ground: 0 V to 18 V; (2)Digital Inputs (Pins 1–10): 0 V to 7.0 V; (3)VOUT: Indefinite Short to Ground Momentary Short to VCC; (4)Power Dissipation: 450 mW; (5)Storage Temperature Range: –25 to +100℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Thermal Resistance, Junction to Ambient/Junction to Case: 140/55℃/W.

Features

AD557JNZ features: (1)Complete 8-Bit DAC; (2)Voltage Output—0 V to 2.56 V; (3)Internal Precision Band-Gap Reference; (4)Single-Supply Operation: 5 V (±10%); (5)Full Microprocessor Interface; (6)Fast: 1 μs Voltage Settling to 1/2 LSB; (7)Low Power: 75 mW; (8)No User Trims Required; (9)Guaranteed Monotonic Over Temperature; (10)All Errors Specified TMIN to TMAX; (11)Small 16-Lead DIP or 20-Lead PLCC Package; (12)Low Cost.

Diagrams

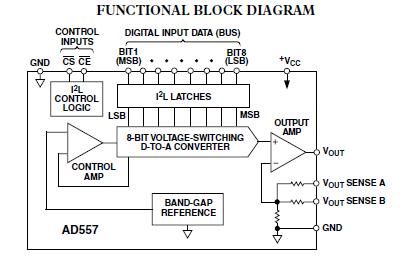

AD557JNZ functional block diagram
