Product Summary
The AT89S53-24PI is a low-power, high-performance CMOS 8-bit microcomputer with 12K bytes of Downloadable Flash programmable and erasable read only memory. The AT89S53-24PI is manufactured using Atmel high density nonvolatile memory technology and is compatible with the industry standard 80C51 instruction set and pinout. The onchip Downloadable Flash allows the program memory to be reprogrammed in-system through an SPI serial interface or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Downloadable Flash on a monolithic chip, the Atmel AT89S53-24PI is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.
Parametrics
AT89S53-24PI absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.
Features
AT89S53-24PI features: (1)Compatible with MCS-51Products; (2)12K Bytes of In-System Reprogrammable Downloadable Flash Memory; (3)4.0V to 6V Operating Range; (4)Fully Static Operation: 0 Hz to 24 MHz; (5)Three-Level Program Memory Lock; (6)256 x 8-bit Internal RAM; (7)32 Programmable I/O Lines; (8)Three 16-bit Timer/Counters; (9)Nine Interrupt Sources; (10)Programmable UART Serial Channel; (11)SPI Serial Interface; (12)Low Power Idle and Power Down Modes; (13)Interrupt Recovery From Power Down; (14)Programmable Watchdog Timer; (15)Dual Data Pointer; (16)Power Off Flag.

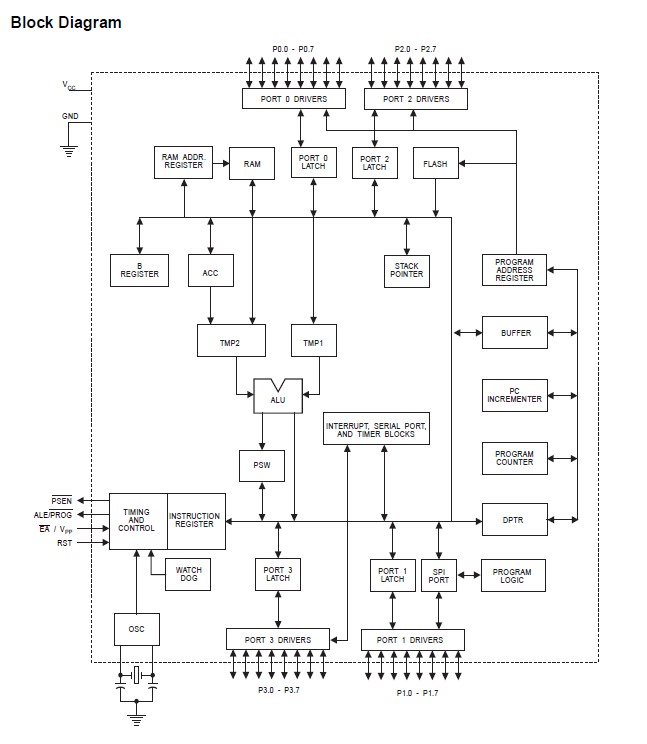

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT89S53-24PI |
Atmel |
8-bit Microcontrollers (MCU) w/12k |
Data Sheet |
Negotiable |
|
||||||
