Product Summary

The CA3162E is an I2L monolithic A/D converter that provides a 3 digit multiplexed BCD output. It is used with the CA3161E BCD-to-Seven-Segment Decoder/Driver and a minimum of external parts to implement a complete 3-digit display. The CA3162AE is identical to the it except for an extended operating temperature range. The CA3161E is described in the Display Drivers section of this data book.

Parametrics

CA3162E absolute maxing ratings: (1)DC Supply Voltage (Between Pins 7 and 14): +7V; (2)Input Voltage (Pin 10 or 11 to Ground): ±15V.

Features

CA3162E features: (1)Dual Slope A/D Conversion; (2)Multiplexed BCD Display; (3)Ultra Stable Internal Band Gap Voltage Reference; (4)Capable of Reading 99mV Below Ground with Single Supply; (5)Differential Input; (6)Internal Timing - No External Clock Required; (7)Choice of Low Speed (4Hz) or High Speed (96Hz)Conversion Rate; (8)Hold Inhibits Conversion but Maintains Delay; (9)Overrange Indication: EEE for Reading Greater than +999mV, for Reading More Negative than -99mV When Used With CA3161E; (10)Extended Temperature Range Version Available.

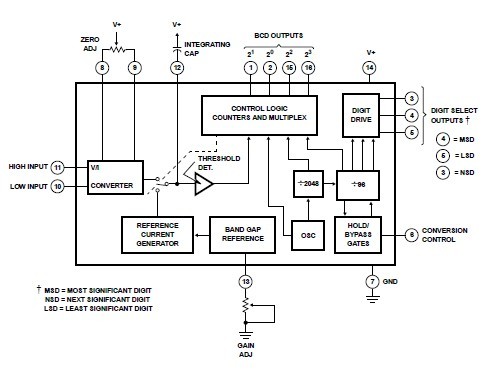

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CA3162E
CA3162E

Other


Data Sheet

Negotiable
