Product Summary

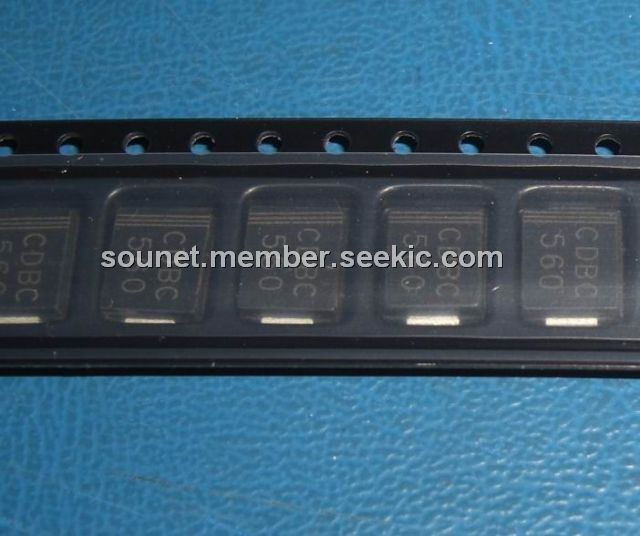

The CDBC560-G is a SMD schottky barrier rectifier.
Parametrics
CDBC560-G absolute maximum ratings: (1)max repetitive peak reverse voltage, VRRM: 60V; (2)max DC blocking voltage, VDC: 60V; (3)max RMS voltage, VRMS: 42V; (4)peak surge forward current, IFSM: 100A; (5)max average forward current, Io: 5.0A; (6)max instantaneous forward current at 5.0A, VF: 0.75V; (7)max DC reverse current at rated DC blocking votlage, IR: 0.5mA at Ta=25℃; 50mA at Ta=100℃; (8)max thermal resistance, RθJA: 50℃/W; RθJL: 10℃/W; (9)max operating junction temperature, Tj: 125℃; (10)storage temperature, Tstg: -65 to 150℃.
Features
CDBC560-G features: (1)ideal for surface mount applications; (2)easy pick and place; (3)plastic package has underwriters Lab. flammability classification 94V-0; (4)built-in strain relief; (5)low forward voltage drop.

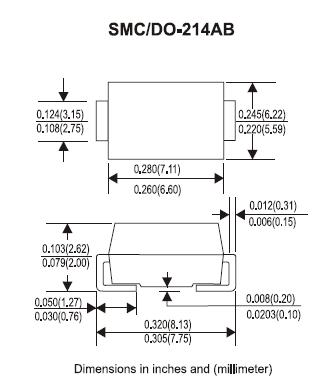

Diagrams
