Product Summary

The HEF4081B is a quad 2-input AND gate. The output is fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS(usually ground). Unused inputs must be connected to VDD, VSS, or another input. The HEF4081B is suitable for useing over both the industrial (-40 ℃ to +85 ℃) and automotive (-40 ℃ to +125 ℃) temperature ranges.

Parametrics

HEF4081B maximum ratings: (1)VDD supply voltage: -0.5 +18 V; (2)IIK input clamping current VI < -0.5 V or VI > VDD + 0.5 V: ±10 mA; (3)VI input voltage: -0.5 VDD + 0.5 V; (4)IOK output clamping current: VO < -0.5 V or VO > VDD + 0.5 V - ±10 mA; (5)II/O input/output current: ±10 mA; (6)IDD supply current: 50 mA; (7)Tstg storage temperature: -65 +150℃; (8)Tamb ambient temperature: -40 +125℃.

Features

HEF4081B features: (1)Fully static operation; (2)5 V, 10 V, and 15 V parametric ratings; (3)Standardized symmetrical output characteristics; (4)Inputs and outputs are protected against electrostatic effects; (5)Operates across the automotive temperature range -40℃to +125℃; (6)Complies with JEDEC standard JESD 13-B.

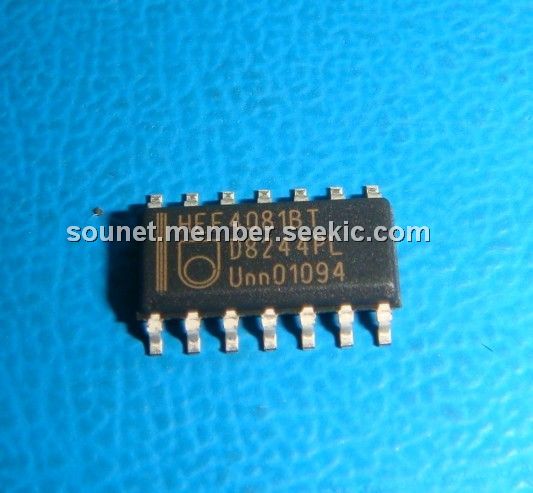

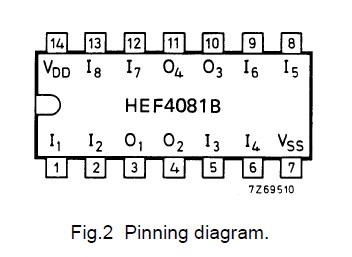

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HEF4081BP,652
HEF4081BP,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-IN AND GATE
Data Sheet
0-1: $0.11
1-25: $0.10
25-100: $0.10
100-250: $0.09
HEF4081BT,652
HEF4081BT,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-IN AND GATE
Data Sheet
0-1: $0.08
1-25: $0.08
25-100: $0.07
100-250: $0.07
HEF4081BT,653
HEF4081BT,653
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUADRUPLE 2-INPUT AND GATE
Data Sheet
0-1: $0.13
1-25: $0.12
25-100: $0.11
100-250: $0.09
HEF4081B
HEF4081B
Other

Data Sheet
Negotiable
