Product Summary

The HIN232ACB is a high-speed RS-232 transmitter/receiver interface circuit. It meets all ElA high-speed RS-232E and V.28 specifications, and is particularly suited for those applications where ±12V is not available. The HIN232ACB requires a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The applications of the HIN232ACB include Portable, Mainframe, Laptop, Printers and Terminals, Instrumentation, UPS, Modems.

Parametrics

HIN232ACB absolute maximum ratings: (1)VCC to Ground:(GND -0.3V) <VCC < 6V; (2)V+ to Ground:(VCC -0.3V) <V+ < 12V; (3)V- to Ground:-12V < V- < (GND +0.3V); (4)Input Voltages: TIN:-0.3V < VIN < (V+ +0.3V), RIN:±30V; (5)Output Voltages: TOUT:(V- -0.3V) < VTXOUT < (V+ +0.3V), ROUT:(GND -0.3V) < VRXOUT < (V+ +0.3V); (6)Short Circuit Duration: TOUT:Continuous, ROUT:Continuous.

Features

HIN232ACB features: (1)Meets All RS-232E and V.28 Specifications; (2)Requires Only 0.1μF or Greater External Capacitors; (3)High Data Rate:230kbit/s; (4)Requires Only Single +5V Power Supply; (5)Onboard Voltage Doubler/Inverter; (6)Low Power Consumption (Typ):5mA; (7)Multiple Drivers:±10V Output Swing for +5V lnput, 300Ω Power Off Source Impedance, Output Current Limiting, TTL/CMOS Compatible; (8)Multiple Receivers:±30V Input Voltage Range, 3kΩ to 7kΩ Input Impedance, 0.5V Hysteresis to Improve Noise Rejection; (9)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

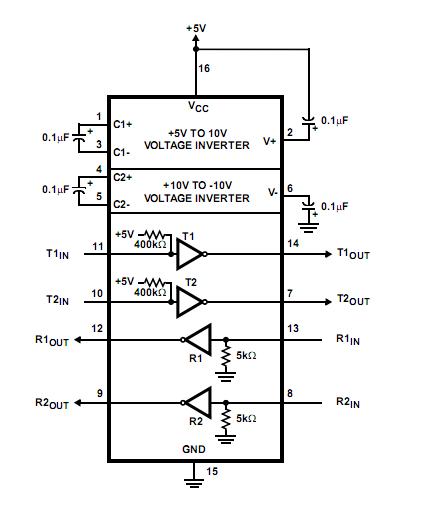

HIN232ACB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

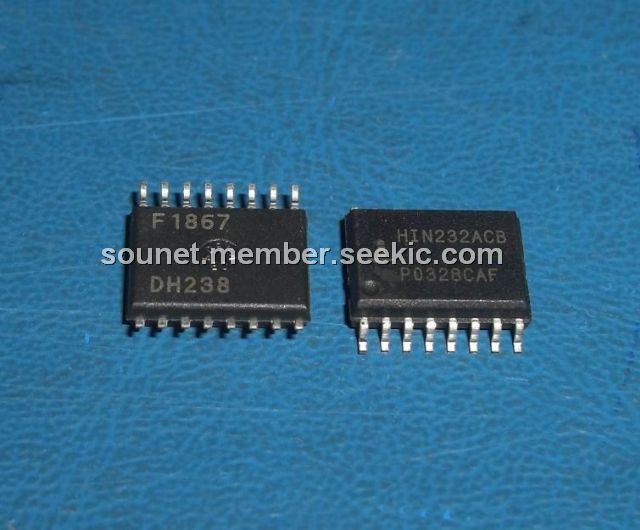

HIN232ACB
HIN232ACB


IC 2DRVR/2RCVR RS232 5V 16-SOIC

Data Sheet

Negotiable
HIN232ACBN
HIN232ACBN


IC TXRX RS-232 5V HS 16-SOIC

Data Sheet

Negotiable
HIN232ACBNZ-T
HIN232ACBNZ-T

Intersil

RS-232 Interface IC RS232 5V 2D/2R COM

Data Sheet

0-1: $0.50
1-25: $0.43
25-100: $0.35
100-250: $0.33
HIN232ACBNZ
HIN232ACBNZ

Intersil

RS-232 Interface IC RS232 5V 2D/2R COM

Data Sheet

0-1: $0.50
1-25: $0.43
25-100: $0.35
100-250: $0.33
HIN232ACBN-T
HIN232ACBN-T


IC 2DRVR/2RCVR RS232 5V 16-SOIC

Data Sheet

Negotiable
HIN232ACB-T
HIN232ACB-T


IC 2DRVR/2RCVR RS232 5V 16-SOIC

Data Sheet

Negotiable
HIN232ACBZ
HIN232ACBZ

Intersil

RS-232 Interface IC RS232 5V 2D/2R 16W COM

Data Sheet

0-1: $0.75
1-25: $0.50
25-100: $0.35
100-500: $0.31
HIN232ACBZ-T
HIN232ACBZ-T

Intersil

RS-232 Interface IC RS232 5V 2D/2R 16W COMEL

Data Sheet

0-1: $0.75
1-25: $0.50
25-100: $0.43
100-1000: $0.26
