Product Summary

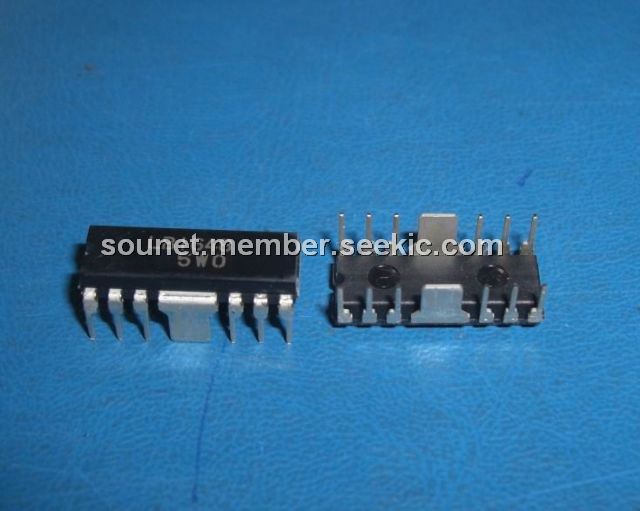

The LB1648 is a dual bidirectional motor driver. It is especially suited for reel motor in cassette deck.
Parametrics
LB1648 absolute maximum ratings: (1)maximum supply voltage, VCC max: 18V; (2)input voltage, VIN: 18V; (3)output current, IO: ±0.8A; (4)allowable power dissipation, Pd max: 1.9W; (5)operating temperature, Topr: -25 to 75℃; (6)storage temperature, Tstg: -55 to 125℃.
Features
LB1648 features: (1)2-input logic can be used to exercise control of bidirectional driving, braking and open; (2)output votlage variable by use of external zener diode; (3)on-chip thermal protector.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LB1648 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
