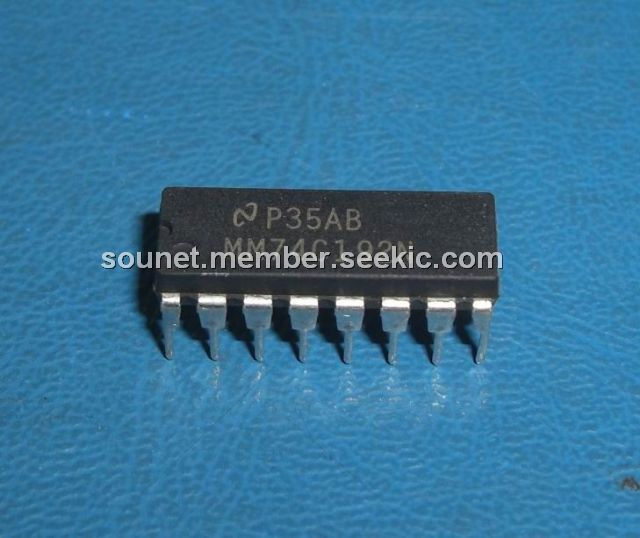

The MM74C192N is a 4-Bit Up/Down Decade Counter. The device is a monolithic complementary MOS (CMOS) integrated circuit. Counting up and counting down is performed by two count inputs, one being held high while the other is clocked. The outputs change on the positive-going transition of this clock. The MM74C192N features preset inputs that are set when load is a logical 0 and a clear which forces all outputs to 0 when it is at a logical 1. The counter also has carry and borrow outputs so that they can be cascaded using no external circuitry.
Parametrics
MM74C192N absolute maximum ratings: (1)Voltage at Any Pin: -0.3V to VCC + 0.3V; (2)Operating Temperature Range (TA): -40℃to a85℃; (3)Storage Temperature Range (TS): -65℃to a150℃; (4)Maximum VCC Voltage: 18V; (5)Power Dissipation (PD): 500 mW; (6)Operating VCC Range: 3V to 15V; (7)Lead Temperature (TA) (Soldering, 10 sec.): 260℃.
Features
MM74C192N features: (1)High noise margin 1V guaranteed; (2)Tenth power TTL compatible Drive 2 LPTTL loads; (3)Wide supply range 3V to 15V; (4)Carry and borrow outputs for N-bit cascading; (5)Asynchronous clear; (6)High noise immunity 0.45 VCC (typ.).

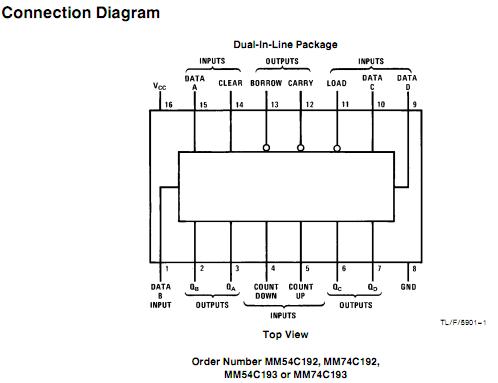

Diagrams
