Product Summary

The Z86E6116PSC is a signle-chip microcontroller with 16 Kbytes of EPROM and 236 bytes of general-purpose RAM. It is pin compatible. It offers fast execution, efficient use of memory, sophisticated interrupts, input/output bit manipulation capabilities, and easy hardware/software system expansion along with low cost and low power consumption. The applications of the device demand powerfull I/O capabilities. And it fulfills this with 32-pin dedicated to input and output.

Parametrics

Z86E6116PSC absolute maximum ratings: (1)VCC, supply voltage: -0.3 to 7.0V; (2)Tstg, storage temp: -65 to 150℃.

Features

Z86E6116PSC features: (1)Tpc, input clock period: 83 to 500ns when TA=0 to 70℃, 12MHz; 62.5 to 500ns when TA=0 to 70℃, 16MHz; (2)TrC, TfC, clock input rise & fall times: 15ns max when TA=0 to 70℃, 12MHz; 10ns max when TA=0 to 70℃, 16MHz; (3)TwC, input clock width: 41ns min when TA=0 to 70℃, 12MHz; 31ns min when TA=0 to 70℃, 16MHz; (4)TwTinL, timer input low width: 75ns min when TA=0 to 70℃, 12MHz; 50ns min when TA=0 to 70℃, 16MHz; (5)TwTinh, timer input high width: 5TpC min when TA=0 to 70℃, 12MHz; 5TpC min when TA=0 to 70℃, 16MHz; (6)TpTin, timer input period: 8TpC min when TA=0 to 70℃, 12MHz; 5TpC min when TA=0 to 70℃, 16MHz.

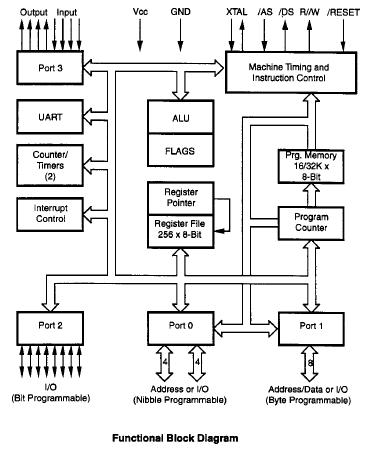

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

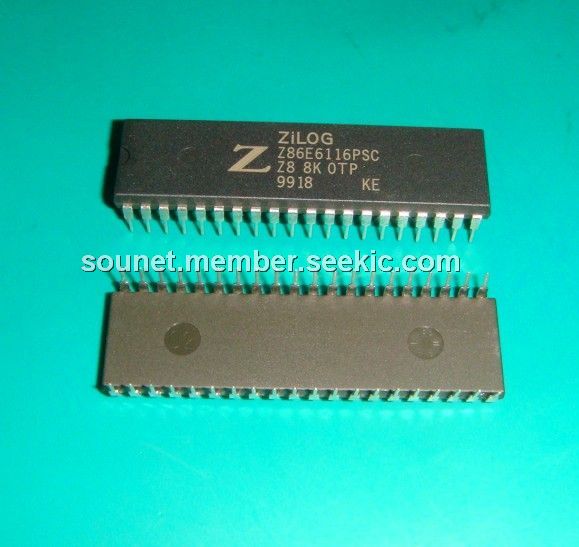

Z86E6116PSC
Z86E6116PSC

ZiLOG

8-bit Microcontrollers (MCU) 16K OTP 16MHz W/UART

Data Sheet

0-80: $8.11
80-100: $7.37
