Product Summary

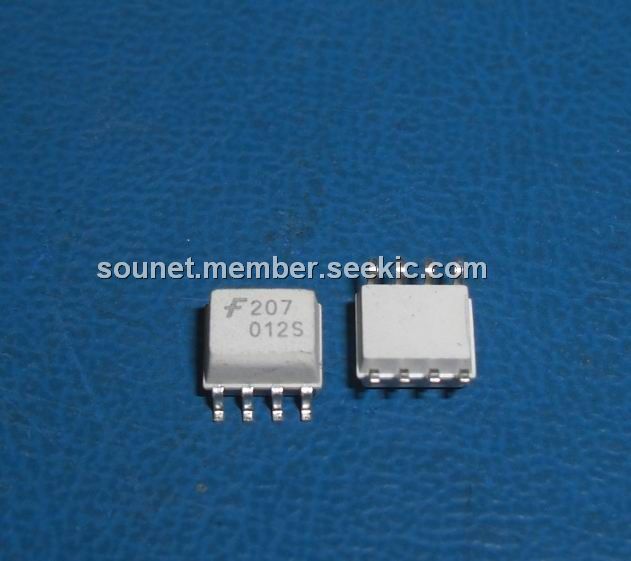

The MOC207M is a small outline optocoupler. The device consists of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector, in a surface mountable, small outline, plastic package. The MOC207M is ideally suited for high density applications, and eliminate the need for through - the - board mounting. The applications of the MOC207M include Feedback Control Circuits, Interfacing and coupling systems of different potentials and impedances, General Purpose Switching Circuits and Monitor and Detection Circuits.
Parametrics
MOC207M absolute maximum ratings: (1)emitter, Forward Current - Continuous, IF: 60 mA; Forward Current - Peak (PW = 100 μs, 120 pps), IF (pk): 1.0 A; Reverse Voltage, VR: 6.0 V; LED Power Dissipation @ TA = 25℃, PD: 90mW; Derate above 25℃: 0.8 mW/℃; (2)detector, Collector-Emitter Voltage, VCEO: 70 V; Emitter-Collector Voltage, VECO: 7.0 V; Collector-Base Voltage, VCBO: 70V; Collector Current-Continuous, IC: 150 mA; (3)Detector Power Dissipation @ TA = 25℃, PD: 150mW; Derate above 25℃: 1.76 mW/℃; (4)Input-Output Isolation Voltage (f = 60 Hz, t = 1 min.), VISO: 2500 Vac(rms); (5)Total Device Power Dissipation @ TA = 25℃, PD: 250mW; Derate above 25℃: 2.94 mW/℃; (6)Ambient Operating Temperature Range, TA: -40 to +100℃; (7)Storage Temperature Range, Tstg: -40 to +150℃.
Features
MOC207M features: (1)U.L. Recognized; (2)VDE Recognized; (3)Closely Matched Current Transfer Ratios; (4)Convenient Plastic SOIC-8 Surface Mountable Package Style; (5)Minimum BVCEO of 70 Volts Guaranteed; (6)Standard SOIC-8 Footprint, with 0.050" Lead Spacing; (7)Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering; (8)High Input-Output Isolation of 2500 VAC(rms) Guaranteed.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC207M |
Fairchild Semiconductor |
Transistor Output Optocouplers SO-8 PHOTO TRANS |
Data Sheet |
|
|
||||||||||||
|
MOC207M_F132 |
Fairchild Semiconductor |
Transistor Output Optocouplers Phototransistor Output |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC207M_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers SO-8 PHOTO TRANS |
Data Sheet |
Negotiable |
|
||||||||||||
