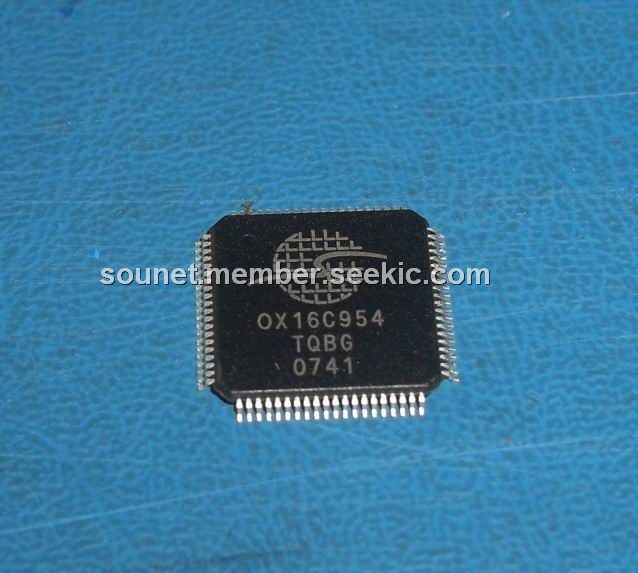

OX16C954-TQBG

Product Summary

The OX16C954-TQBG is a Quad UART. It is a single chip solution for 4 channel serial add-in cards. The OX16C954-TQBG is ideally suited to PC applications, such as high-speed multi-port add-in cards that enable PC users to take advantage of the maximum performance of analogue modems or ISDN terminal adapters. It is also suitable for any equipment requiring high speed RS232/RS422/RS485 interfaces. The OX16C954-TQBG supports 9-bit data frames used in multi-drop industrial protocols. It also offers multiple external clock options for isochronous applications, e.g. ISDN, xDSL.

Parametrics

OX16C954-TQBG absolute maximum ratings: (1)DC supply voltage: -0.3V to 7.0V; (2)DC input voltage:-0.3V to VDD + 0.3V ; (3)DC input current: ±10mA; (4)Storage temperature: -40℃ to 125℃.

Features

OX16C954-TQBG features: (1)Four independent full-duplex asynchronous 16C950 high performance UART channels ; (2)128-byte deep FIFO per transmitter and receiver ; (3)UARTs fully software compatible with industry standard 16C55x type UARTs ; (4)Pin compatible with TL16C554 and ST16C654; (5)Baud rates up to 15 Mbps in normal mode and 60Mbps in external 1x clock (isochronous) mode ; (6)Readable FIFO levels ; (7)Flexible clock prescaler from 1 to 31.875 ; (8)Automated in-band flow control using programmable Xon/Xoff characters, in both directions ; (9)Automated out-of-band flow control using CTS#/RTS# and/or DSR#/DTR# ; (10)Arbitrary trigger levels for receiver and transmitter FIFO interrupts and automatic in-band and out-of-band flow control ; (11)Readable in-band and out-of-band flow control status ; (12)Programmable special character detection ; (13)Infra-red (IrDA) receiver and transmitter option ; (14)5, 6, 7, 8 and 9-bits data framing ; (15)Detection of bad data in the receiver FIFO ; (16)Independent channel reset by software ; (17)Transmitter and receiver can be disabled ; (18)Transmitter idle interrupt ; (19)RS-485 buffer enable signals ; (20)Four byte device ID ; (21)Sleep mode (low operating current) ; (22)System clock up to 60 MHz at 5V, 50 MHz at 3.3V ; (23)5.0 volt or 3.3v operation; (24)68pin PLCC and 80pin TQFP package options.

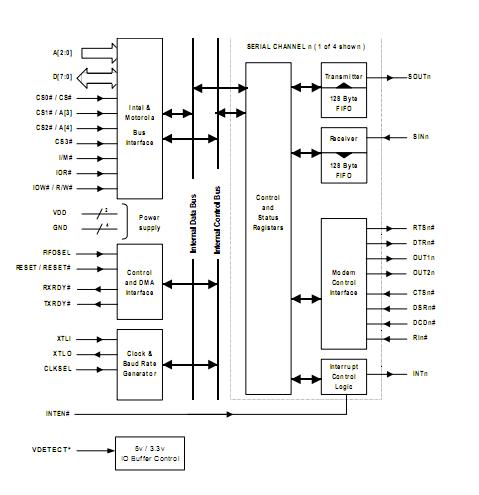

Diagrams
