Product Summary

The VND14NV04 is a monolithic device designed in STMicroelectronic VIPower M0-3 Technology, intended for replacement of standard Power MOSFETS from DC up to 50KHz applications. Built in thermal shutdown, linear current limitation |and overvoltage clamp protect the chip in harsh environments. Fault feedback of the VND14NV04 can be detected by monitoring the voltage at the input pin.

Parametrics

VND14NV04 absolute maximum rating: (1)VDS Drain-source Voltage (VIN=0V): Internally Clamped V; (2)VIN Input Voltage: Internally Clamped V; (3)IIN Input Current: +/-20 mA; (4)RIN MIN Minimum Input Series Impedance: 10 W; (5)ID Drain Current: Internally Limited A; (6)IR Reverse DC Output Current: -15 A; (7)VESD1 Electrostatic Discharge (R=1.5KW, C=100pF): 4000 V; (8)VESD2 Electrostatic Discharge on output pin only (R=330W, C=150pF): 16500 V.

Features

VND14NV04 features: (1)Linear current limitation; (2)Thermal shut down; (3)Short circuit protection; (4)Integrated clamp; (5)Low current drawn from input pin; (6)Diagnostic feedback through input pin; (7)ESD protection; (8)Direct access to the gate of the power mosfet(analog driving); (9)Compatible with standard power mosfet.

Diagrams

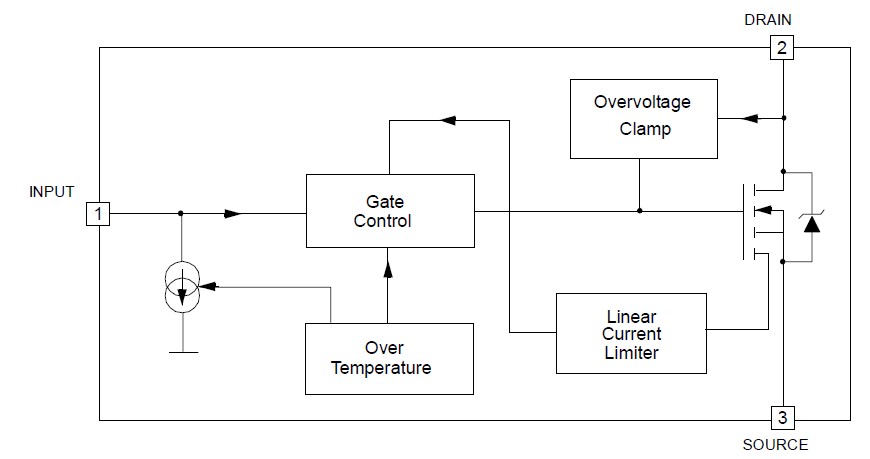

VND14NV04 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

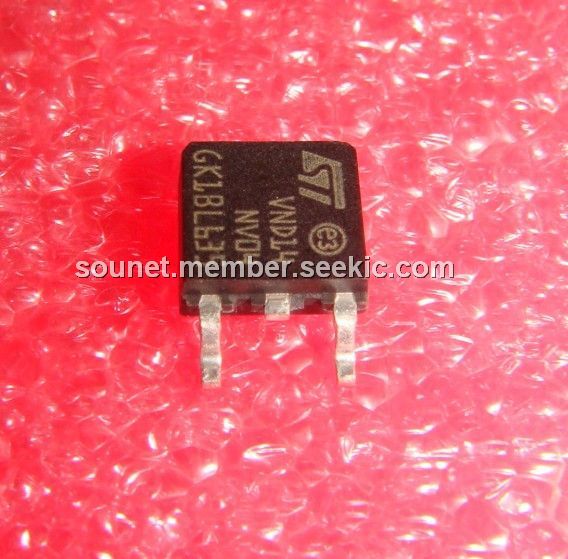

VND14NV04
VND14NV04
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 40V 12A OmniFET
Data Sheet
0-2240: $0.62
2240-5000: $0.59
VND14NV04-1
VND14NV04-1
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 40V 12A OmniFET
Data Sheet
0-2290: $0.67
2290-5000: $0.63
5000-10000: $0.62
VND14NV04TR-E
VND14NV04TR-E
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 40V 12A OmniFET
Data Sheet
0-1860: $0.59
1860-2500: $0.59
2500-5000: $0.57
5000-10000: $0.55
VND14NV04-E
VND14NV04-E
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 40V 12A OmniFET
Data Sheet
0-2240: $0.62
2240-5000: $0.59
VND14NV04-1-E
VND14NV04-1-E
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 40V 12A OmniFET
Data Sheet
0-2230: $0.59
2230-5000: $0.57
5000-10000: $0.55
