Product Summary

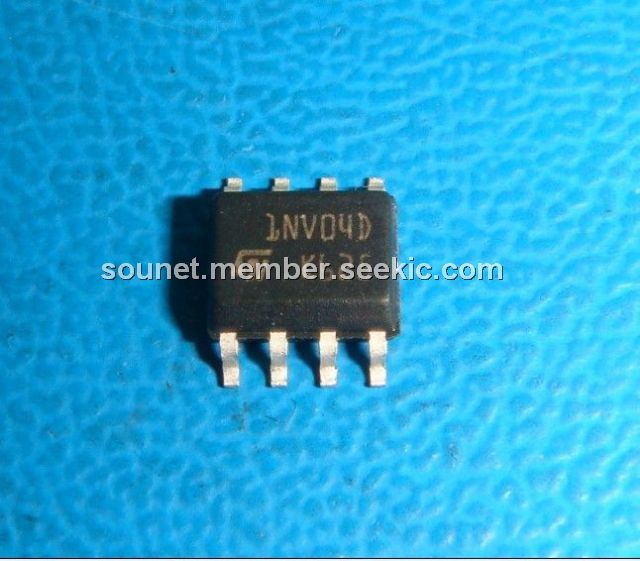

The VNS1NV04D is a device formed by two monolithic OMNIFET II chips housed in a standard SO-8 package. The VNS1NV04D is designed in STMicroelectronics VIPower M0-3 Technology: they are intended for replacement of standard Power MOSFETS from DC up to 50KHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protects the chip in harsh environments. Fault feedback of the VNS1NV04D can be detected by monitoring the voltage at the input pin.

Parametrics

VNS1NV04D absolute maximum rating: (1)VDSn Drain-source Voltage (VINn=0V): Internally Clamped V; (2)VINn Input Voltage: Internally Clamped V; (3)IINn Input Current: +/-20 mA; (4)RIN MINn Minimum Input Series Impedance: 330 W; (5)IDn Drain Current: Internally Limited A; (6)IRn Reverse DC Output Current: -3 A; (7)VESD1 Electrostatic Discharge (R=1.5KW, C=100pF): 4000 V; (8)VESD2 Electrostatic Discharge on output pins only (R=330W, C=150pF): 16500 V; (9)Ptot Total Dissipation at Tc=25℃: 4 W; (10)Tj Operating Junction Temperature: Internally limited; (11)Tc Case Operating Temperature: Internally limited; (12)Tstg Storage Temperature: -55 to 150 ℃.

Features

VNS1NV04D features: (1)Linear current limitation; (2)Thermal shut down; (3)Short circuit protection; (4)Integrated clamp; (5)Low current drawfrom input pin; (6)Diagnostic feedback through input pin; (7)ESD protection; (8)Direct access to the gate of the power mosfet (analog driving); (9)Compatible with standard power mosfet.

Diagrams

VNS1NV04D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VNS1NV04D
VNS1NV04D
STMicroelectronics
MOSFET N-Ch 40V 1.7A Omni
Data Sheet
0-1370: $0.48
1370-2000: $0.45
2000-5000: $0.43
5000-10000: $0.41
VNS1NV04D13TR
VNS1NV04D13TR
STMicroelectronics
MOSFET N-Ch 40V 1.7A Omni
Data Sheet
0-1710: $0.48
1710-2000: $0.45
2000-2500: $0.45
2500-5000: $0.43
VNS1NV04DPTR-E
VNS1NV04DPTR-E
STMicroelectronics
MOSFET OMNIFET POWER MOSFET 40V 1.7 A
Data Sheet
0-1: $0.91
1-10: $0.78
10-100: $0.62
100-250: $0.55
VNS1NV04DP-E
VNS1NV04DP-E
STMicroelectronics
MOSFET OMNIFET POWER MOSFET 40V 1.7 A
Data Sheet
0-1290: $0.40
1290-2000: $0.36
2000-5000: $0.34
5000-10000: $0.33
VNS1NV04D-E
VNS1NV04D-E
STMicroelectronics
MOSFET N-Ch 40V 1.7A Omni
Data Sheet
Negotiable
VNS1NV04DTR-E
VNS1NV04DTR-E
STMicroelectronics
MOSFET N-Ch 40V 1.7A Omni
Data Sheet
Negotiable
