Product Summary

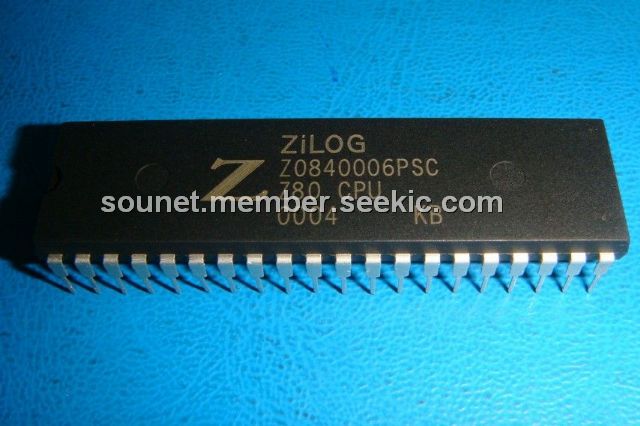

The CPU Z0840006PSC is a index register. The CPU Z0840006PSC fourth generation enhanced microprocessor with exceptional cmputational power. It offers higher system throughput and more efficient memory utilization than comparable second and third generation microprocessors. The internal registers contain 208 bits of read memory that are accessible to the programmer. The register Z0840006PSC include two sets of six general purpose registers or as 16 bits registers.

Parametrics

Z0840006PSC absolute maximum ratings: (1)Voltage on Vcc with respect to Vss: -0.3 to 7V; (2)Voltage on ail inputs with respect to Vss: -0.3 to Vcc +0.3V; (3)Storage temperature: -65 to 150℃.

Features

Z0840006PSC features: (1)Single 5 volt power supply; (2)NMOS version for low cost high performance solutions. CMOS version for high performance low power designs; (3)6MHz version can be operated at 6.144MHz clock; (4)Two sixteen bits index registers; (5)On chip dynamic memory refresh counter.

Diagrams

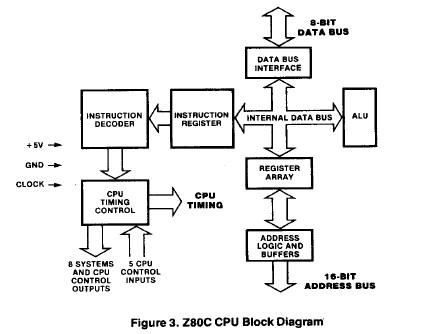

Z0840006PSC block diagram
