Product Summary

The 2N2857 is the silicon NPN transistor, which is designed for UHF equipment. Applications of the 2N2857 include low noise amplifier, oscillator, and mixer.

Parametrics

2N2857 maximum ratings: (1)Collector-Emitter Voltage: VCEO= 15 V; (2)Collector-Base Voltage: VCBO= 30 V; (3)Emitter-Base Voltage: VEBO= 3.0 V; (4)Collector Current, Continuous: IC= 40 mA; (5)Operating Junction Temperature: -65 to +200 ℃; (6)Storage Temperature: TSTG= -65 to +200℃.

Features

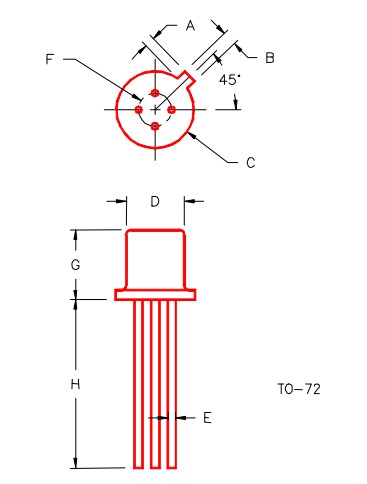

2N2857 features: (1)Low power, ultra-high frequency transistor; (2)Housed in TO-72 case.; (3)Also available in chip form using the 0011 chip geometry.; (4)The Min and Max limits shown are per MIL-PRF-19500/343 which Semicoa meets in all cases.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
2N2857
2N2857

Central Semiconductor

Transistors Bipolar (BJT) NPN VHF/UHF AM

Data Sheet

0-1: $2.90
1-25: $2.80
25-100: $2.65
100-250: $2.51
