Product Summary

The AM26S02DC is a dual DC level sensitive, retriggerable, resettable monostable multivibrator built using advanced schottky technology. The output pulse duration and accuracy depend on the external timing components of each multivibrator. The AM26S02DC features PNP inputs to reduce the input loading.

Parametrics

AM26S02DC absolute maximum ratings: (1)storage temperature: -65 to 150℃; (2)ambient temperature under bias: -55 to 125℃; (3)supply voltage to ground potential: -0.5 to 7.0V; (4)DC voltage applied to outputs for high output state: -0.5 to VCC max; (5)DC input voltage: -0.5 to 5.5V; (6)DC output current, into outputs: 30mA; (7)DC input current: -30 to 5.0mA.

Features

AM26S02DC features: (1)advanced schottky technology with PNP inputs; (2)retriggerable 0% to 100% duty cycle; (3)28ns to ∞ output pulse width range; (4)100kΩ maximum timing resistor value; (5)typical pulse width change of only 0.4% over 0 to 70℃ with Rx=100kΩ.

Diagrams

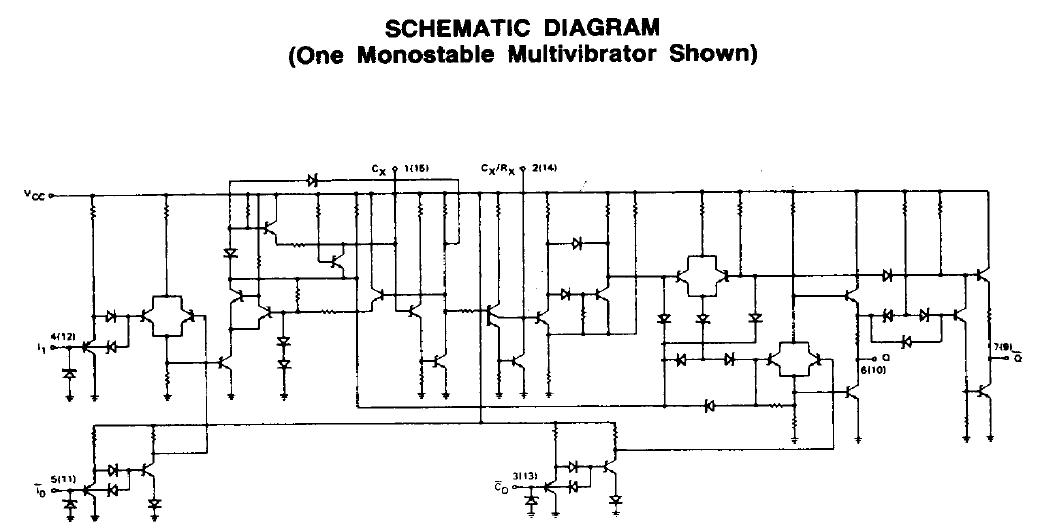

AM26S02DC schematic diagram
