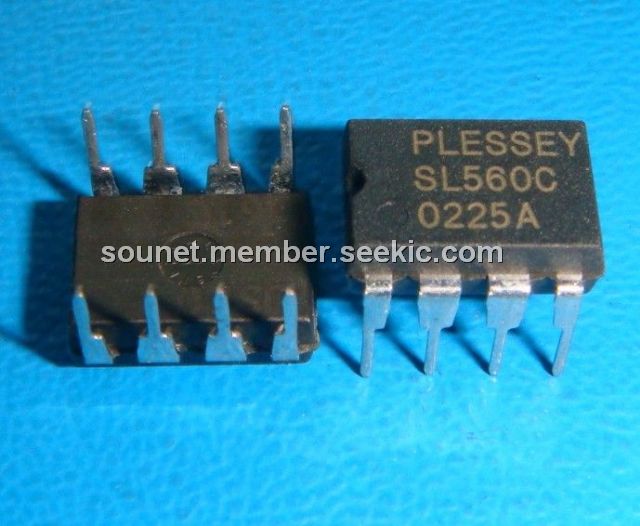

Product Summary
The SL560C is a 300MHz low noise amplifier. It contains three very high performance transistors and associated biasing components in an eightlead TO-5 package forming a 300MHz low noise amplifier. The configuration employed permits maximum flexibility with minimum use of external components. The SL560C has guaranteed operation over the fully Military Temperatures Range and is screened to MIL-STD-883 Class B. Data is available separately. The applications of the SL560C include Radar IF Preamplifiers, Infra-Red Sysems Head Amplifiers, Amplifiers in Noise Measurement Systems, Low Power Wideband Amplifiers, Instrumentation Preamplifiers, 50 ohm Line Drivers, Wideband Power Amplifiers, Wideband Dynamic Range IF Amplifiers and Aerial Preamplifiers.
Parametrics
SL560C absolute maximum ratings: (1)Supply voltage: +15V; (2)Storage temperature, SL560C DP: -55℃ to +150℃; SL560C CM -65℃ to +150℃; (3)Junction temperature, SL560C DP: +150℃; SL560C CM +175℃; (4)Operating temperature range, SL560C DP: -30℃ to +85℃; SL560C CM: -55℃ to +125℃; (5)Thermal resistance, Chip-to-ambient, SL560C CM: 225℃/W; SL560C DP 111℃/W; Chip-to-case: SL560C CM 65℃/W; SL560C DP 71℃/W.
Features
SL560C features: (1)Gain up to 40dB; (2)Noise Figures less than 2dB (Rs 200 ohm); (3)Bandwidth 300MHz; (4)Supply Voltage 2-15V (Depending on Configuration); (5)Low Power Consumption.

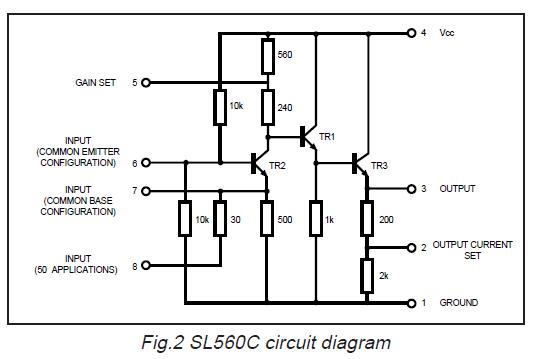

Diagrams
